Mitutoyo 571-262-20 electronic depth gauge (0-200mm/8'')

Specifications
Produced by Mitutoyo
Model 571-262-20
Made in Japan
Measuring range 0 - 200mm / 0 - 8in
Display 0.01mm / 0.0005in
Accuracy ±0.02 mm / ±0.001in
Note Base size (width x thickness): 100×6mm
What is an electronic depth gauge?
Electronic Depth Gage (Absolute Digimatic Depth Gage) is a type of length measuring instrument used to measure the depth of parts or materials in engineering industries such as construction, mechanical engineering, molds, etc. Automotive, furniture, etc. Mitutoyo electronic depth gauge is manufactured using modern Japanese technology to have the most accuracy and reliability in the world, with many options such as measuring range, accuracy, many styles, mm or inch units to suit many different requirements of customers.

Mitutoyo electronic depth gauge 571-262-20

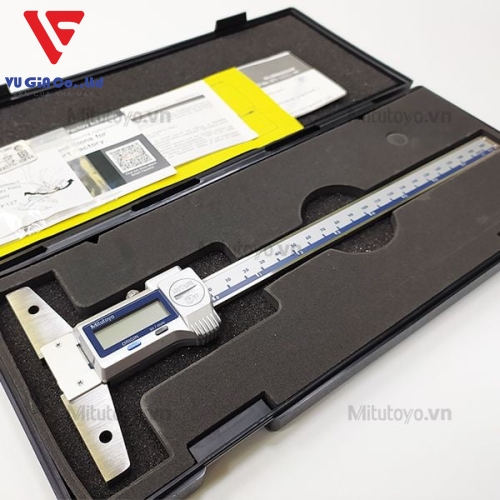

Mitutoyo 571-262-20 electronic depth gauge taken at Mitutoyo.VN

The electronic depth gauge 571-262-20 is compactly designed with a measuring range of 0-200mm, a display of 0.01mm, accuracy: ±0.02mm, measuring 2 metric and inch systems, base size (width x). thickness): 100 x 6mm. Designed with low coefficient of thermal expansion measuring tool steel, polished sliding surface with innovative design slider. As a result, the device can move smoothly and provide accurate measurement results with high measurement stability.

Advantages of depth gauge
The Mitutoyo 571-262-20 electronic depth gauge uses an electromagnetic induction reader with a linear encoder on the body combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on. without the need to adjust or reset the ruler.

Mitutoyo electronic depth gauge uses 1 SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic box to help protect Better protection, convenient in storage and transportation.

Mitutoyo electronic depth gauge 571-262-20

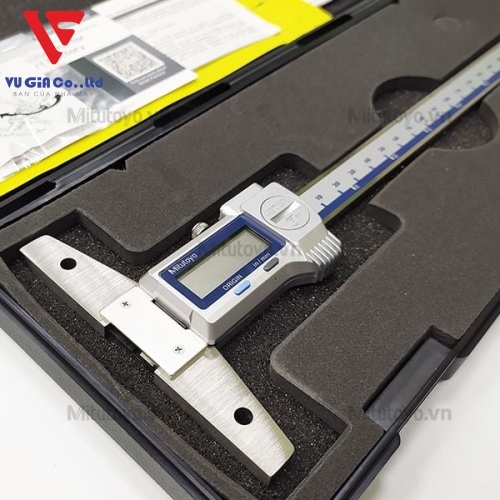

Mitutoyo 571-262-20 electronic depth gauge taken at Mitutoyo.VN

Highly durable impact-resistant LCD display, 9.0 mm character height improves readability, Measurement results are displayed on a clear electronic display for easy quick reading. fast.

Notes when using an electronic depth gauge
- When choosing an electronic depth gauge to ensure the correct measuring range and accuracy, the depth gauge interval is always larger than the depth of detail to be checked and the accuracy is smaller than the accuracy of the detail to be checked, the width depth gauge larger than the hole diameter or the width of the test piece.

- Electronic depth gauges need to be stored in dry places, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not put the electronic depth gauge together with other repair and processing tools to avoid collision damage, or place other tools on top of the ruler to prevent the ruler from being warped.

Mitutoyo electronic depth gauge 571-262-20

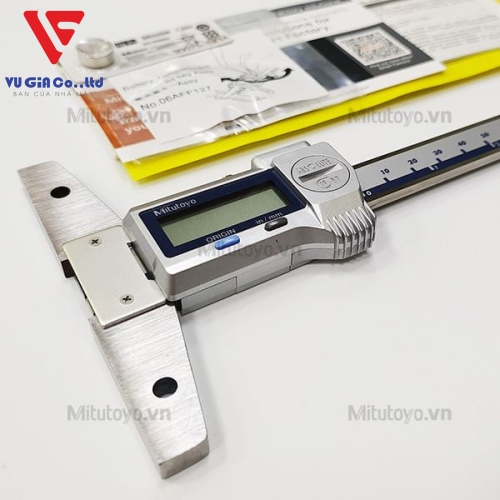

Mitutoyo 571-262-20 electronic depth gauge taken at Mitutoyo.VN

- Do not use the electronic depth gauge to measure when the object is rotating or moving. When using the caliper, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.

- Always keep the ruler free of dirt and dust on the surface of the ruler, before and after use, clean the ruler with a clean rag and apply specialized oil or use RP7 solution to clean the surface of the ruler.

- Do not use the ruler in an environment with water or oil directly acting on the ruler, when not in use press the On/Off button to turn off the power to save battery.
