Gap Thickness Gauge Mitutoyo 184-313S (0.05-1mm)
- Product code: 184-313S
Warranty 12 months
The Mitutoyo 184-313S thickness gauge is used to measure the thickness of gaps of equipment, applied in engineering industries such as construction, mechanical engineering, molds, automobiles, electronic components, furniture, etc. the seventh.
-
2296
-
Contact us
Specifications
Produced by Mitutoyo
Model 184-313S
Made in Japan
Measuring range 0.05 - 1 mm
28 rulers 0.05 - 0.15 mm in 0.01 mm, 0.2 - 1 mm in 0.05 mm
Leaf length 100 mm
Mitutoyo thickness gauge
Mitutoyo 184-313S thickness gauge includes 28 rulers with measuring range: 0.05-1mm, leaf length 100mm used to measure the thickness of gaps of devices. The standard thickness parameters are manufactured according to modern Japanese technology for the most accurate and reliable in the world. Compact design, high accuracy is used to quickly check the gap of two detailed surfaces in technical industries such as construction, mechanical engineering, molds, automobiles, furniture.

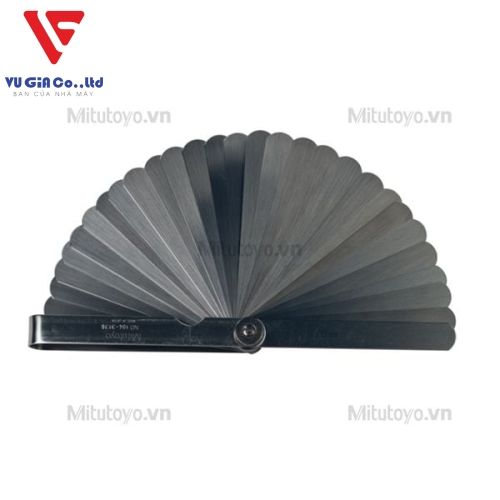

Mitutoyo thickness gauge 184-313S
Mitutoyo Gap Thickness Gauge 184-313S
Advantages of gap thickness gauge
The Mitutoyo Gap Gauge or "gap gauge" is made of high quality carbon steel to reduce wear and prolong the life of the gauge.
- Units mm and inch with leaf length: 100mm, 150mm. The measuring range depends on the needs of the customer.
Mitutoyo Gap Thickness Gauge 184-313S

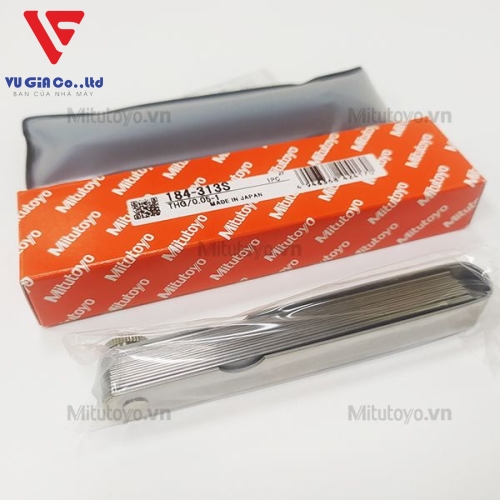

Mitutoyo gap thickness gauge 184-313S taken at Mitutoyo.VN
- Each leaf is removable and easy to read the symbols on the leaves are easy to use. Each leaf is marked by its size.
- Steel cover protects the foil during use and storage, has a locking screw to fix the measuring leaves or disassemble easily, convenient to move and store.
