Gap Thickness Gauge Mitutoyo 184-306S (0.05-0.8mm)

Specifications
Produced by Mitutoyo
Model 184-306S
Made in Japan
Measuring range 0.05 - 0.8 mm
10 rulers 0.05 - 0.2 mm in 0.05 mm, 0.3 - 0.8 mm in 0.1 mm
Leaf length 100 mm
Mitutoyo thickness gauge
The Mitutoyo 184-306S thickness gauge is used to measure the thickness of the gap of devices consisting of 10 rulers with measuring range: 0.05-0.8mm, leaf length 100mm. The standard thickness parameters are manufactured according to modern Japanese technology for the most accurate and reliable in the world. Compact design, high accuracy is used to quickly check the gap of two detailed surfaces in technical industries such as construction, mechanical engineering, molds, automobiles, furniture.

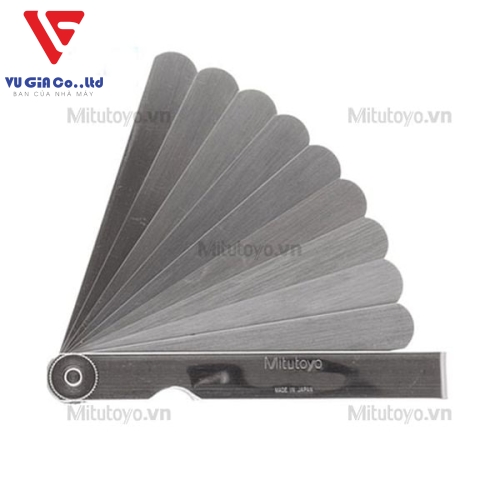

Mitutoyo Gap Thickness Gauge 184-306S

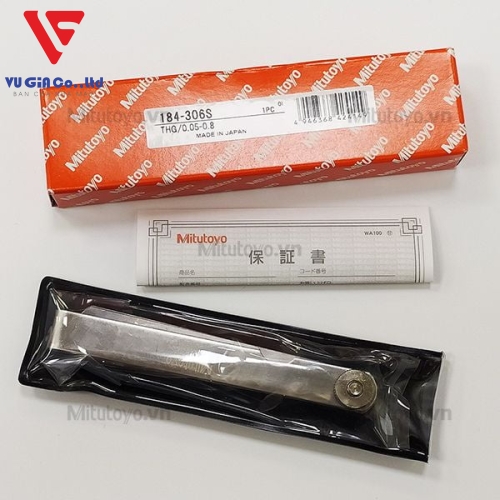

Gap thickness gauge Mitutoyo 184-306S taken at Mitutoyo.VN

Advantages of gap thickness gauge
The Mitutoyo Gap Gauge or "gap gauge" is made of high quality carbon steel to reduce wear and prolong the life of the gauge.

- Units mm and inch with leaf length: 100mm, 150mm. The measuring range depends on the needs of the customer.

- Each leaf is removable and easy to read the symbols on the leaves are easy to use. Each leaf is marked by its size.

- Steel cover protects the foil during use and storage, has a locking screw to fix the measuring leaves or disassemble easily, convenient to move and store.
