Mitutoyo 188-101 30-blade thread gauge (4-42TPI)
- Product code: 188-101
Warranty 12 months
Mitutoyo 188-101 30 leaf thread gauge is used to quickly check the thread pitch of details in technical industries such as construction, mechanical engineering, molds, automobiles, furniture,...
-
2103
-
Contact us
Specifications
Produced by Mitutoyo
Model 188-101
Made in Japan
Measuring range 4 - 42 TPI
30 ruler cards 4, 41/2, 5, 51/2, 6, 7, 8, 9, 10, 11, 111/2, 12, 13, 14, 15, 16, 18, 20, 22, 24, 26 , 27, 28, 30, 32, 34, 36, 38, 40, 42 TPI
Thread Type Angle 55⁰
Mitutoyo thread gauge
Mitutoyo 188-101 thread gauge includes 30 leaves, measuring range: 4 - 42TPI is a standard parameter of thread pitch manufactured by modern Japanese technology for the most accurate and reliable in the world. world, compact design, high accuracy is used to quickly check the thread pitch of details in technical industries such as construction, mechanical engineering, molds, automobiles, furniture, ...

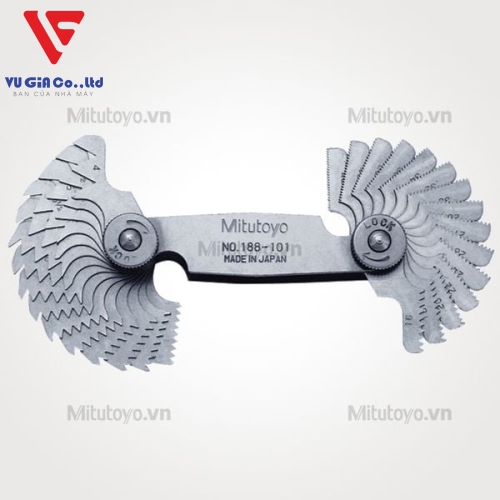

Mitutoyo 188-101 30-blade thread gauge (4-42TPI)
Mitutoyo 188-101 30-blade thread gauge (4-42TPI)
Advantages of thread gauge
Thread gauges are made of high quality carbon steel to reduce wear and increase service life.
- Units mm and inches, shape and thread pitch depending on customer needs.
Mitutoyo 188-101 30-blade thread gauge (4-42TPI)

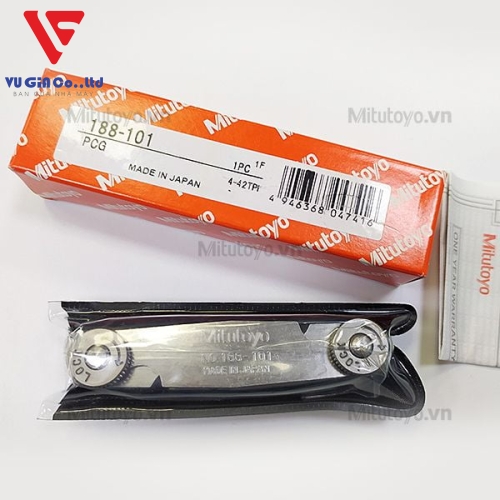

Mitutoyo 30 leaf thread gauge 188-101 (4-42TPI) taken at Mitutoyo.Vn
- Each leaf has easy-to-use leaf symbols marked with its thread pitch.
- Steel cover protects the foil during use and storage, has a locking screw to fix the measuring leaves or disassemble easily, convenient to move and store.
