Mitutoyo 18-blade thread gauge (0.4-7mm)
- Product code: 188-121
Warranty 12 months
The Mitutoyo 188-121 28-blade thread gauge is used to quickly check the thread pitch of details in technical industries such as construction, mechanical engineering, molds, automobiles, and furniture.
-
2042
-
Contact us
Specifications
Produced by Mitutoyo
Model 188-121
Made in Japan
Measuring range 0.4 - 7 mm
18 rulers 0.4, 0.5, 0.75, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6, 6.5, 7 mm
Thread Type Angle 60⁰
Mitutoyo thread gauge
Mitutoyo 188-121 thread gauge includes 18 thread pitch gauge blades with measuring range: 0.4 - 7mm is a standard parameter of thread pitch manufactured by modern Japanese technology for accuracy and reliability The world's most compact, high-precision design is used to quickly check the thread pitch of parts in technical industries such as construction, mechanical engineering, molds, automobiles, furniture. .

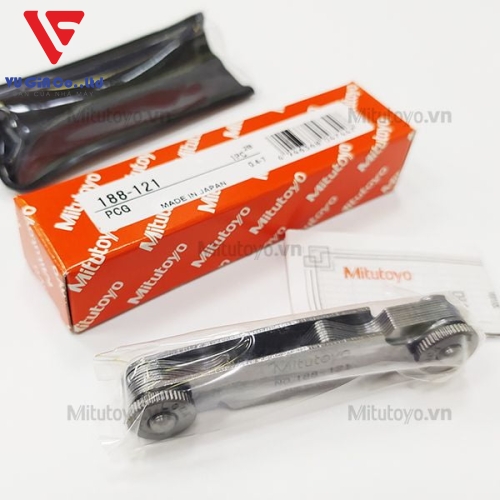

Mitutoyo 18-blade thread gauge 188-121
Mitutoyo 18-blade pitch gauge (0.4-7mm)
Advantages of thread gauge
Thread gauges are made of high quality carbon steel to reduce wear and increase service life.
- Units mm and inches, shape and thread pitch depending on customer needs.

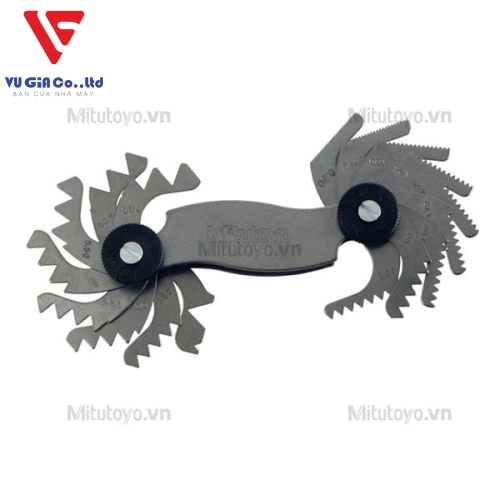

Mitutoyo 18-blade thread gauge 188-121
Mitutoyo 18-blade thread gauge 188-121 taken at Mitutoyo.Vn
- Each leaf has easy-to-use leaf symbols marked with its thread pitch.
- Steel cover protects the foil during use and storage, has a locking screw to fix the measuring leaves or disassemble easily, convenient to move and store.
