Mitutoyo mechanical depth gauge 527-101 (0-150mm)
- Product code: 527-101
Warranty 12 months
Specialized in distributing the Mitutoyo 527-101 mechanical depth gauge used to measure the depth of details or materials in technical industries such as: construction, mechanical engineering, molds, automobiles, furniture.
-
1798
-
Contact us
Specifications
Produced by Mitutoyo
Model 527-101
Made in Japan
Measuring range 0-150 mm
Graduation 0.02 mm
Accuracy ±0.03 mm
Note Base size (width x thickness): 100 x 6.5mm
What is a mechanical depth gauge?
The mechanical depth gauge (Vernier Depth Gage) is a type of length measuring instrument used to measure the depth of parts or materials in engineering industries such as construction, mechanical engineering, molds, umbrellas, etc. car, furniture. The Mitutoyo mechanical depth gauge is manufactured using modern Japanese technology to be the most accurate and reliable in the world, with many options such as measuring range, accuracy, multiple styles, mm units. or inch in accordance with many different requirements of customers.

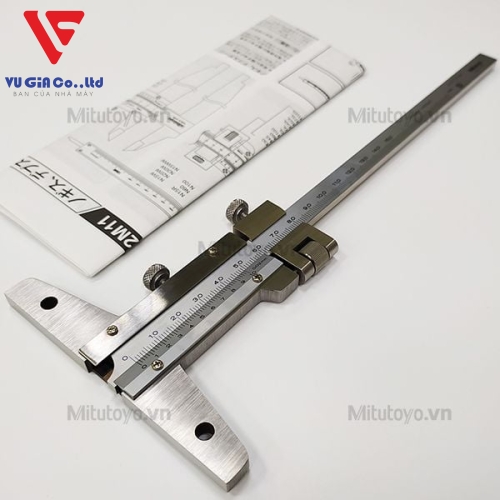

Mitutoyo depth gauge 527-101
Mitutoyo 527-101 depth gauge taken at Mitutoyo.VN
The Mitutoyo 527-101 mechanical depth gauge is compactly designed, has a measuring range of 0-150 mm, a division of 0.02 mm, accuracy: ±0.03 mm (with fine adjustment screws), depth measuring base size (RxD): 100x6.5mm. In addition, customers can expand the base size up to 320mm with genuine accessories attached.
Advantages of depth gauge
Mitutoyo 527-101 mechanical depth gauge is made of measuring tool steel with low coefficient of thermal expansion, polished sliding surface with innovative design slider. As a result, the device can move smoothly and provide accurate measurement results with high measurement stability.

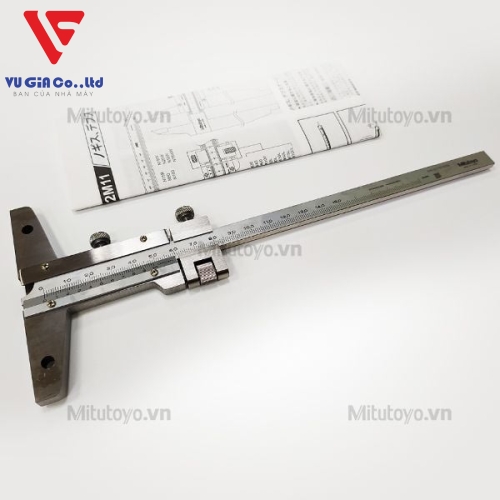

Mitutoyo depth gauge 527-101
Mitutoyo 527-101 depth gauge taken at Mitutoyo.VN
The track surface is designed with an angle of 14º, the lines are evenly divided, the lines are clear, limiting the error of reading the measurement when in use.
Notes on using a mechanical depth gauge
- When choosing a mechanical depth gauge to ensure the correct measuring range and accuracy, the depth gauge interval is always larger than the depth of detail to be checked and the accuracy is smaller than the accuracy of the detail to be checked, the width depth gauge larger than the hole diameter or the width of the test piece.
- Mechanical depth gauges need to be stored in dry places, away from moisture and high humidity, regularly checked for accurate calibration.
- Do not put the mechanical depth gauge together with other repair and processing tools to avoid damage due to collision. Do not place a mechanical depth gauge on top of other tools or place other tools on top of the ruler to prevent the ruler from warping.

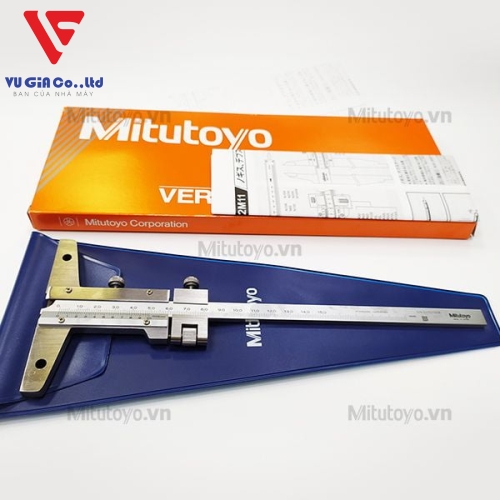

Mitutoyo depth gauge 527-101
Mitutoyo 527-101 depth gauge taken at Mitutoyo.VN
- Do not use a mechanical depth gauge to measure when the object is rotating or moving. When using a caliper, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.
- Always keep the ruler free of dirt and dust on the surface of the ruler, before and after use, clean the ruler with a clean rag and apply specialized oil or use RP7 solution to clean the surface of the ruler.
