Mitutoyo electronic caliper 573-642-20 (10-200mm)
- Product code: 573-642-20
Warranty 12 months
Specialized in supplying Mitutoyo 573-642-20 electronic calipers used to check details and material thickness in the fields of engineering, construction, mechanical engineering, molds, automobiles, furniture.
-
2121
-
Contact us
Specifications
Produced by Mitutoyo
Model 573-642-20
Made in Japan
Measuring range 10 - 200 mm
Accuracy ±005 mm
Display 0.01 mm

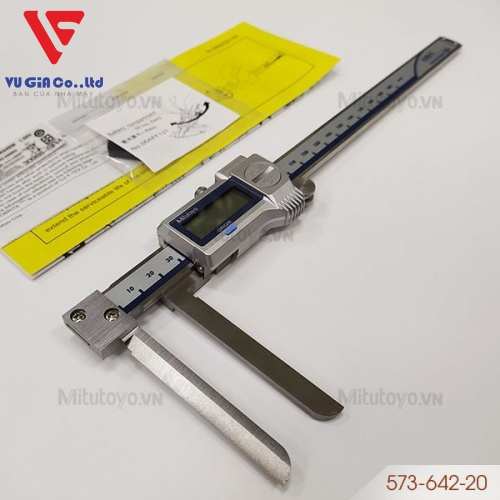

Mitutoyo digital caliper
Mitutoyo electronic caliper (ABSOLUTE Digimatic Caliper) is manufactured according to modern Japanese production technology used to measure the inside size, outside size, measure the turning distance, measure the depth of the details. or samples with high accuracy, fast measurement speed.

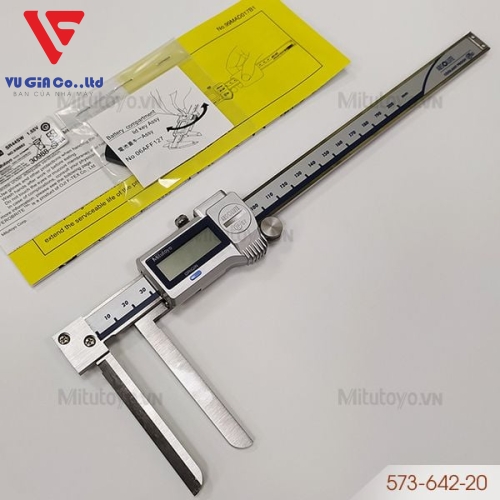

Mitutoyo digital caliper 573-642-20
Mitutoyo 573-642-20 electronic caliper taken at Mitutoyo.VN
Mitutoyo 573-642-20 electronic caliper has a measuring range of 10 - 200mm with high accuracy metric measurement, display: 0.01mm easy to use, accuracy: ±0.05mm suitable for measuring, checking details, material thickness in engineering industries such as construction, mechanical engineering, molds, automobiles, furniture.
The special feature of Mitutoyo 573-642-20 with its long clamp design allows the device to easily measure in hard-to-reach places in grooves, recesses, drill holes in the details with the main measurement capability. tall body. Therefore, it is more convenient to test finished or pre-processed samples.
Advantages of Mitutoyo electronic calipers
The Mitutoyo 573-642-20 electronic caliper is made of measuring tool steel with a low coefficient of thermal expansion, the sliding surface is polished to a high gloss with an innovative design slider that makes the device moveable. light and gives accurate measurement results, high measurement stability.
Mitutoyo electronic caliper uses an electromagnetic induction reader with a linear encoder on the body combined with mitutoyo's ABSOLUTE technology to accurately determine the measuring position of the ruler as soon as the power is turned on without needing to adjust or set. reset the ruler.
Electronic caliper uses 1 SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error, contained in a plastic box to help protect the ruler better, convenient in storage and transportation.

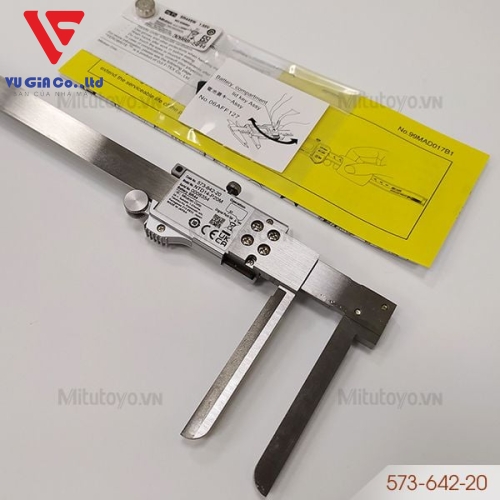

Mitutoyo digital caliper 573-642-20
Mitutoyo 573-642-20 electronic caliper taken at Mitutoyo.VN
There is a factory certificate attached to check the accuracy of the ruler from the Mitutoyo-Japan factory, the Serial number on the certificate is the same as the Serial number on the back of the ruler, which is encrypted by QR code to avoid customers buy fake goods, counterfeit goods on the market.
Highly durable impact-resistant LCD display, 9.0 mm character height improves readability, Measurement results are displayed on a clear electronic display for easy quick reading. fast.
