Mitutoyo mechanical caliper 532-120 (0-180mm/7'')

Specifications
Produced by Mitutoyo
Model 532-120
Made in Japan
Measuring range 0 - 180mm / 0 - 7in
Accuracy ±0.03 mm / ±0.001 in
Graduation 0.02mm / 0.001in
Mitutoyo mechanical caliper
The mechanical caliper (Vernier caliper), also known as the 'mechanical caliper' or 'mechanical caliper', is a length measuring instrument based on the caliper developed by the French mathematician Pierre Vernier. invented in 1631, used to measure the inside dimensions, outside dimensions, measure the turning distance, measure the depth of parts or objects with high accuracy.

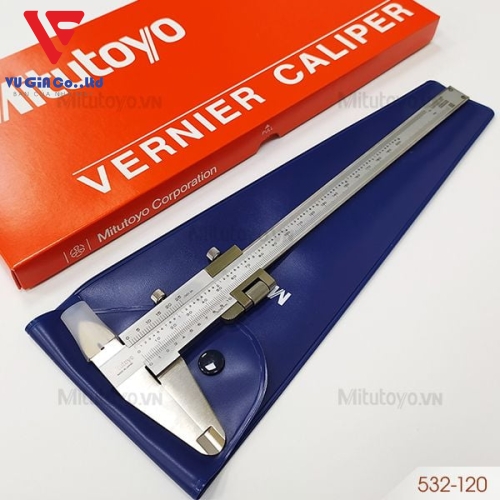

caliper 532-120

The product of the 532-120 chain caliper was taken at Mitutoyo.VN

The Mitutoyo 532-120 mechanical caliper has a measuring range of 0 - 180mm / 0 - 7in measuring 2 metric and inch systems, divisions (drag): 0.02mm / 0.001in, easy to use, accuracy: ±0.03mm / ±0.001in is suitable for measuring and checking details and material thickness in technical industries such as construction, mechanical engineering, molds, automobiles, furniture.

Advantages of Mitutoyo mechanical calipers
Mitutoyo 532-120 mechanical caliper is made of measuring tool steel with low coefficient of thermal expansion, polished sliding surface with innovative design slider. As a result, the device can move smoothly and provide accurate measurement results with high measurement stability.

The track surface is designed with an angle of 14º, the lines are evenly divided, the lines are clear, limiting the error of reading the measurement when in use.

Notes when using
- The caliper should be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not put the caliper together with other repair and processing tools to avoid damage due to collision.

- Do not place the ruler on top of other tools or place other tools on top of the ruler to prevent the ruler from warping.

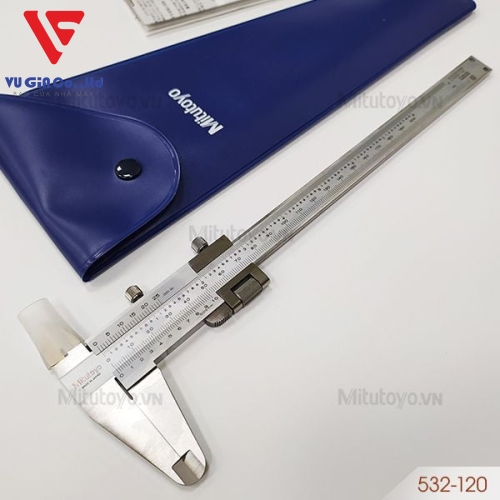

caliper 532-120

The product of the 532-120 chain caliper was taken at Mitutoyo.VN

- Do not use the ruler to measure when the object is rotating or moving, when using the caliper, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.

- Always keep the ruler free from dirt and dust on the surface of the caliper before and after use, clean the ruler with a clean rag and apply specialized oil or use RP7 solution to clean the surface of the ruler.
