Mitutoyo 530-501 mechanical caliper (0 - 600mm)

Specifications
Produced by Mitutoyo
Model 530-501
Made in Japan
Measuring range 0 - 600mm
Accuracy ±0.1mm
0.05mm . division
Mitutoyo mechanical caliper
The mechanical caliper (Vernier caliper), also known as the 'mechanical caliper' or 'mechanical caliper', is a length measuring instrument based on the caliper developed by the French mathematician Pierre Vernier. invented in 1631, used to measure the inside dimensions, outside dimensions, measure the turning distance, measure the depth of parts or objects with high accuracy.

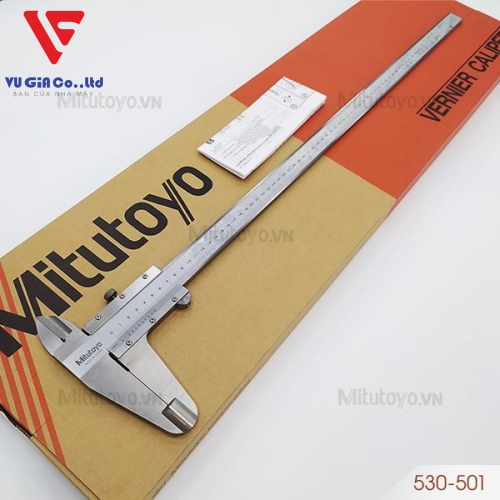

Product of 530-501 chain caliper taken at Mitutoyo.VN

Mitutoyo 530-501 mechanical caliper has an external measuring range of 0 - 600mm for metric measurement, division (drag): 0.05mm, easy to use, accuracy: ±0.1mm, suitable for measuring and checking details Details, material thickness in engineering industries such as construction, mechanical engineering, molds, automobiles, furniture.

The Mitutoyo 530-501 mechanical caliper is made of measuring tool steel with a low coefficient of thermal expansion, polished sliding surface with  improved design slider. As a result, the device can be moved gently and   provides accurate measurement results, high measurement stability.

The track surface is designed with an angle of 14º, the lines are evenly divided, the lines are clear, limiting the error of reading the measurement when in use.

Notes when using
- The caliper should be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not put the caliper together with other repair and processing tools to avoid damage caused by collision.

- Do not place the ruler on top of other tools or place other tools on top of the ruler to prevent the ruler from warping.

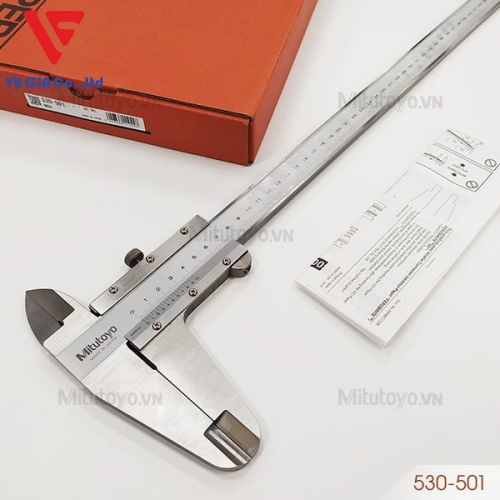

Product of 530-501 chain caliper taken at Mitutoyo.VN

- Do not use the ruler to measure when the object is rotating or moving, when using the caliper, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.

- Always keep the ruler free from dirt and dust on the surface of the caliper before and after use, clean the ruler with a clean rag and apply specialized oil or use RP7 solution to clean the surface of the ruler.
