Mitutoyo mechanical caliper 530-119 (0-300mm)

Specifications
Produced by Mitutoyo
Model 530-119
Made in Japan
Measuring range 0-300mm/0-12''
Accuracy ±0.04mm
Graduation 0.02mm (0.001in)
Notes High accuracy
Mitutoyo mechanical caliper
The mechanical caliper (Vernier caliper), also known as the "mechanical caliper" or "mechanical caliper" is a length measuring instrument based on the caliper invented by the French mathematician Pierre Vernier in 1631. Used to measure the inside dimensions, outside dimensions, measure the turning distance, measure the depth of parts or samples with high accuracy.

Mitutoyo mechanical caliper 530-119 (0-300mm)

Mitutoyo 530-119 products are imported and distributed genuine

Mitutoyo 530-119 mechanical caliper with high accuracy, measuring range 0-300mm/0-12'' measuring in mm and inch system, division (du-chain): 0.02mm and 0.001'' easy to use, Accuracy: ± 0.04mm suitable for measuring and checking details and material thickness in technical industries such as construction, mechanical engineering, molds, automobiles, furniture, ...

Advantages of Mitutoyo mechanical calipers
Mitutoyo 530-119 mechanical caliper is made of measuring tool steel with low coefficient of thermal expansion, polished sliding surface with innovative design slider. As a result, the device can move smoothly and provide accurate measurement results with high measurement stability.

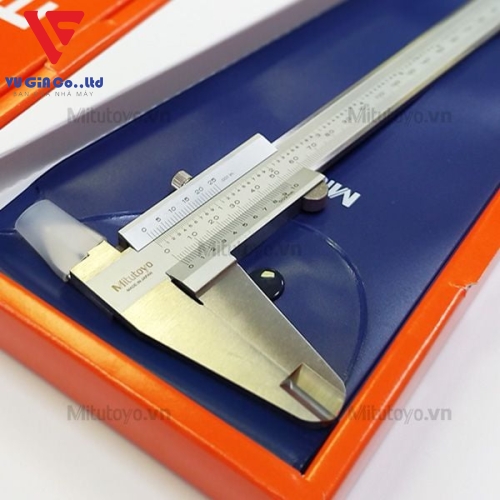

Mitutoyo mechanical caliper 530-119 (0-300mm)

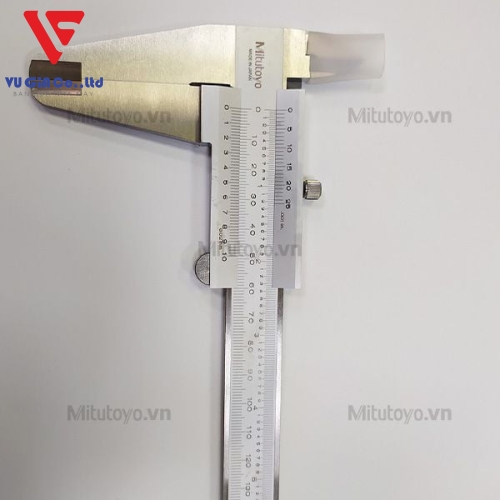

Actual product image of Mitutoyo mechanical caliper 530-119

The track surface is designed with an angle of 14º, the lines are evenly divided, the lines are clear, limiting the error of reading the measurement when in use.

How to use Mitutoyo mechanical caliper

How to read the measured value
Read the millimeter scale by 0.02mm.

How to read mechanical caliper gauge value

Ruler body division: 18x1mm=18mm
Sprocket: 45x0.02mm=0.90mm
Measurement result: 18mm+0.9mm=18.90mm

Read the 0.001'' inch scale reading.

How to read mechanical caliper gauge value
Ruler body division: (10x4)x0.025''=1''
Chain drive: 3x0.001''=0.003''
Measurement result: 1''+0.003”=1.003''

Notes when using the ruler:
- The caliper should be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not put the caliper together with other repair and processing tools to avoid damage due to collision. Do not place the ruler on top of other tools or place other tools on top of the ruler to prevent the ruler from warping.

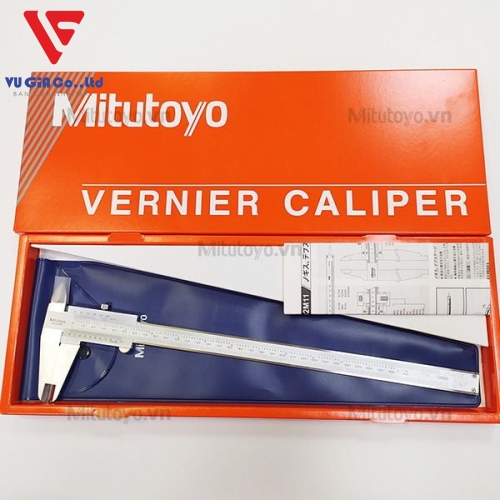

Mitutoyo mechanical caliper 530-119 (0-300mm)

530-119 . chain caliper product

- Do not use the ruler to measure when the object is rotating or moving, when using the caliper, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces ...

- Always keep the ruler free from dirt and dust on the surface of the caliper before and after use, clean the ruler with a clean rag and apply specialized oil or use RP7 solution to clean the surface of the ruler.
