Micrometer in electronics Mitutoyo 345-251-30 (25-50mm)

Specifications
Produced by Mitutoyo
Model 345-251-30
Made in Japan
Measuring range 25-50 mm
Accuracy ±6 m
Graduation 0.01 mm
Micrometer in electronics Mitutoyo
The internal micrometer is a precision measuring instrument used to accurately measure the inside diameter of cylindrical parts, pipes and other cylindrical objects. It is an essential measuring instrument for mechanics, mechanics and technicians in the precision industry testing who need to ensure accurate measurements for assembly and testing.

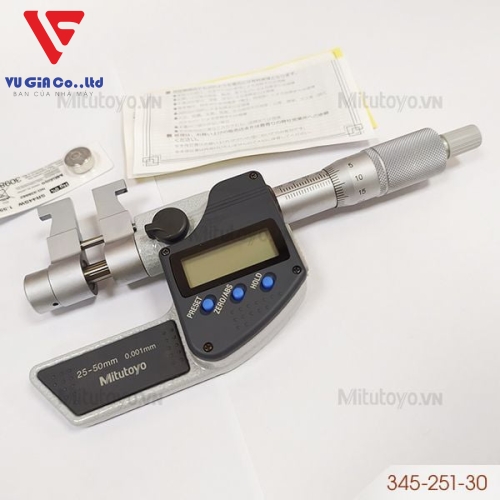

Electronic micrometer measured in Mitutoyo 345-251-30

Electronic micrometer measured in Mitutoyo 345-251-30 taken at Mitutoyo.VN

The 345-251-30 electronic micrometer is compactly designed with a measuring range of 25 - 50mm metric, 0.001mm display with an accuracy of ±6μm. The micro is designed for durability and reliability. The general structure of the micrometer ruler is: movable measuring head (spindle), locking screw / locking pin (lock), main body (sleeve), auxiliary ruler body (thimble), fixed measuring head (anvil), knob / ratchet knob.

Advantages of electronic micrometer measured in
- The measuring face is coated with carbide for anti-abrasion to ensure accuracy.

Equipped with a knob to help avoid errors caused by measuring pressure acting on the measuring surface.

- With the electronic measuring micrometer, there is an LCD screen with large characters to help read the results better. In addition, on the body of the ruler are clearly engraved numeral lines that do not fade during long-term use.

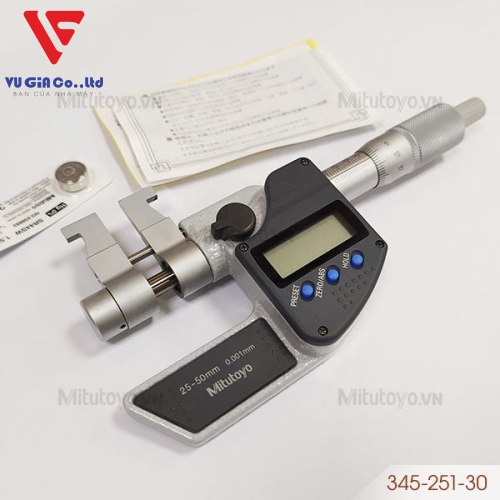

Electronic micrometer measured in Mitutoyo 345-251-30

Electronic micrometer measured in Mitutoyo 345-251-30 taken at Mitutoyo.VN

Function lock prevents accidental change of reference setting during measurement.

- With protection class IP65 (waterproof) allows use in environments with liquids.
