External micrometer Mitutoyo 103-143-10 (150-175mm)

Specifications
Produced by Mitutoyo
Model 103-143-10
Made in Japan
Measuring range 150 - 175mm
Accuracy ±4µm
Graduation 0.01mm


Advantages of Microphone Mitutoyo
- The external micrometer is an accurate measuring device from the famous Mitutoyo brand from Japan. Used to accurately measure the thickness of the block, the outside diameter of the slot.

- Micrometer outside Mitutoyo 103-143-10 is made of sturdy, stainless, good-strength material to help the product stay durable for a long time when used. Along with the design of the measuring range 150-175mm, the division is 0.01mm, the accuracy is ±4µm to bring the results with high accuracy to the user.

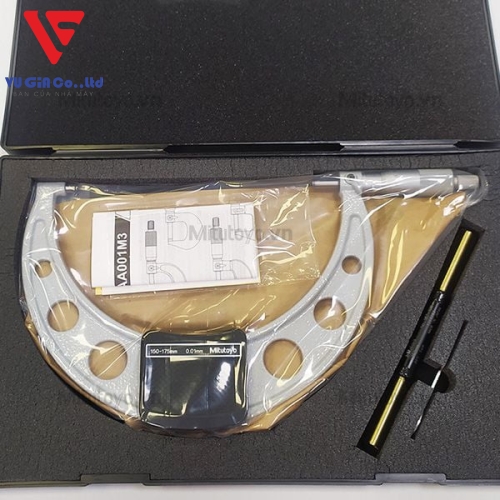

External micrometer Mitutoyo 103-143-10 (150-175mm)

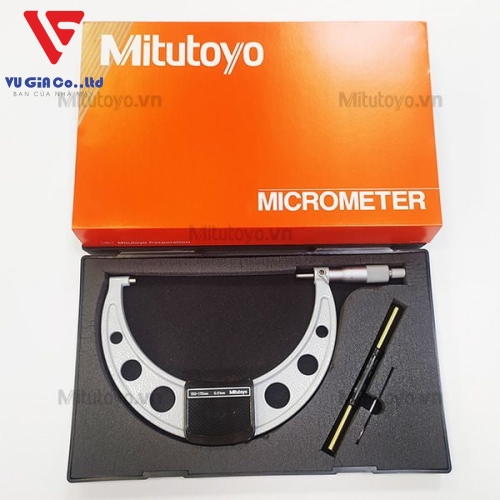

The external micrometer kit is distributed at Mitutoyo.vn

- Micrometer Mitutoyo 103-143-10 is a specialized product for measuring the thickness and outer diameter of materials such as metal, wood, plastic, small-sized materials that need high accuracy. Many applications for industries, mechanics, ... auxiliary help measure technical parameters for equipment, materials or machines.

How to use Micrometer Mitutoyo
- Check that the sub-ruler moves easily without jamming or deforming by turning the measuring range all the way.
- Clip a lint-free sheet of paper between the static probe and the moving shaft, such as a thickness gauge, and slowly pull the paper out to remove dirt from the measuring surface.

- When measuring with the left hand holding the Micrometer, the right hand rotates the ratchet to create the correct pressure continuously from 3 to 5 times to check the strong zero point acting on the static measuring head will affect the accuracy of the measurement results.

- Must keep the center line of the two measuring torches coincide with the size of the object to be measured.

- In case the micrometer must be removed from the measuring position, turn the locking nut (brake lever) to fix the dynamic measuring head before removing the micrometer from the measuring object.

How to store Micrometer Mitutoyo
- Always check the Micrometer Mitutoyo before and after use, wipe off dust with a soft dry cloth, if using the tool in a place where there is a possibility of contamination, water, it is necessary to ensure that anti-rust treatment measures are taken. .

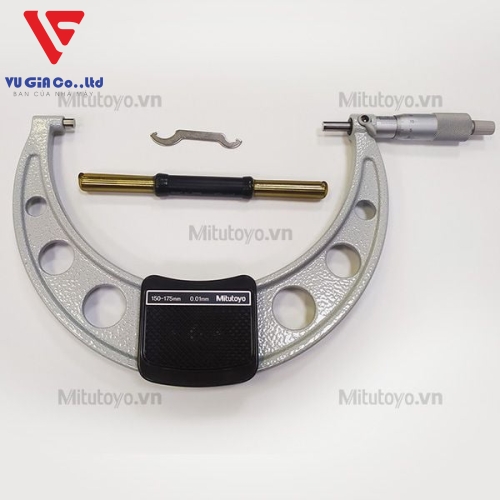

External micrometer Mitutoyo 103-143-10 (150-175mm)

Clean the product before and after use

- Do not store the tool in a room with high temperature, humidity, dust or steam. When storing the ruler for a long time, use a cloth soaked in anti-rust oil and gently wipe the parts on the micrometer.
