Electronic external micrometer Mitutoyo 340-521 (400 - 500mm)

Specifications
Produced by Mitutoyo
Model 340-521
Made in Japan
Measuring range 400 - 500 mm
Accuracy ±11 m
Visibility 0.001 mm
Mitutoyo electronic external micrometer
Digital Outside Micrometers (Digimatic Outside Micrometers) is a length measuring instrument based on the principle of using screw threads to measure linear distances originating from Gascoigne's invention in 1638. Mitutoyo electronic external micrometers are manufactured according to modern Japanese technology with IP65 waterproof standard, many options such as measuring range, accuracy, measurement speed, display in mm-inch units, how to enter data after measuring ... suitable with different customer requirements.

Mitutoyo 340-521 . electronic external micrometer

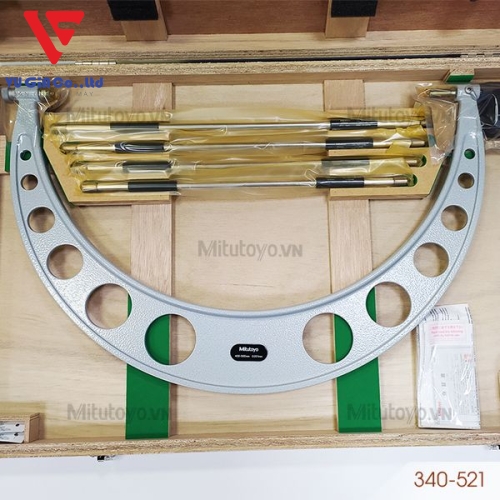

Electronic micrometer product 340-521 taken at Mitutoyo.VN

The Mitutoyo 340-521 electronic external micrometer is compactly designed with a measuring range of 400 - 500mm, a display of 0.001mm with high accuracy: ±11µm, suitable for measuring lengths and outside diameters of parts. round, material thickness in engineering industries such as construction, mechanical engineering, mold, automobile, furniture, ... with high precision.

Advantages of electronic external measurement
Mitutoyo 340-521 electronic external micrometer uses a rotating electromagnetic induction reader combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without the need to adjust or reset the ruler. .

Mitutoyo electronic external micrometer is designed to be compact and sophisticated, and the two measuring heads are coated with anti-wear (carbide) coating to increase durability and use time.

Mitutoyo 340-521 . electronic external micrometer

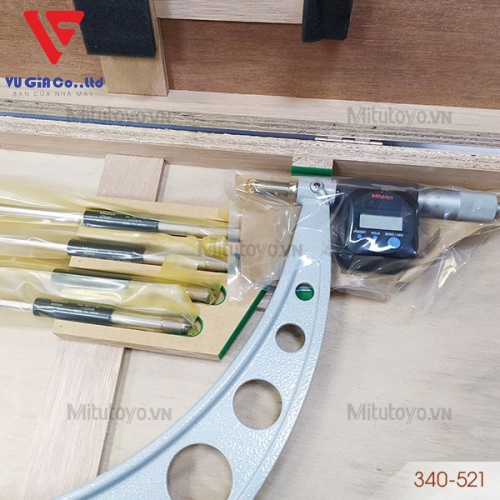

Electronic micrometer product 340-521 taken at Mitutoyo.VN

Mitutoyo electronic external micrometer is equipped with a slide for constant measuring force to help you easily use the device, accurate measurement results, high measurement stability.

Calibration axis, accessories are convenient to calibrate the standard parameter for the Micrometer easily to help the device operate stably, ensuring measurement accuracy.

Mitutoyo electronic external micrometer uses 1 SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic or wooden box Helps protect the ruler better, convenient in storage and transportation.

Notes when using electronic micrometer
Electronic external micrometers need to be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

Do not use an external electronic micrometer to measure rotating or moving parts, when using it, avoid dropping the micrometer on the floor, workshop floor, tape, hard surfaces...

Always keep the Micrometer free of dirt and dust on the two probes, the surface of the two probes before and after use must be cleaned with a clean, dust-free paper or use RP7 solution to clean the surface of the two probes then take clean, dust-free paper.

Do not put micrometer together with other repair and processing tools to avoid collision damage, clean it after use and put the micrometer in the correct position in the container for storage.

The auto On/Off function will be turned on when the electronic micrometer is not operated continuously for about 20 minutes, when the main shaft is rotated, the micrometer will work again. In case the Micrometer does not work or the measurement is incorrect, please contact us to check and evaluate the condition of the device.
