Micrometer for measuring the edge of the can Mitutoyo 147-202 (0-13mm)

Specifications
Produced by Mitutoyo
Model 147-202
Made in Japan
Measuring range 0 - 13 mm
Accuracy ±3μm
Display 0.01mm
Note For cans with gas inside
Micrometer to measure the edge of cans
Micrometer to measure the edge of a mechanical can Mitutoyo is a type of length measuring instrument based on the operating principle of a mechanical external measuring micrometer, a mechanical can measure micrometer is used to measure the width, height, and depth of the edge of the can used for internal use. product processing industries.

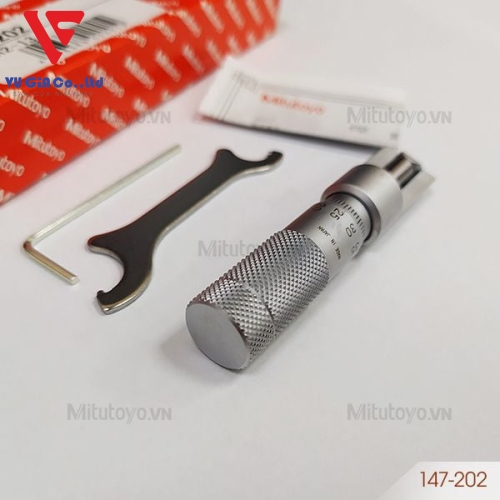

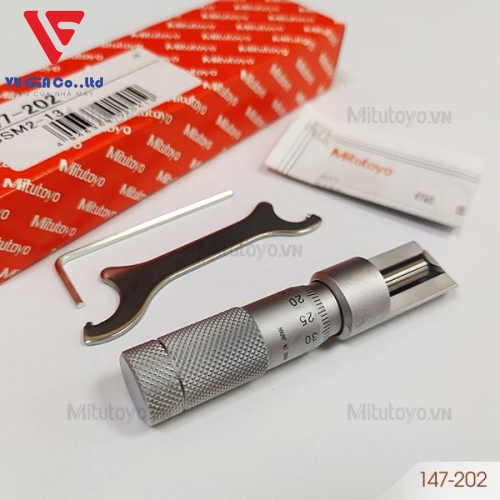

Micrometer for measuring the edge of mitutoyo cans 147-202

Micrometer for measuring the edge of mechanical cans 147-202  is compactly designed with a measuring range of 0-13mm, divisions of 0.01mm, accuracy: ±0.003mm, used to measure the width, height, and depth of cans containing gas. inside

Advantages panme measures the edge of the can
- Mitutoyo mechanical can edge micrometer is manufactured on modern Japanese technology, the micrometer frame is electrostatically painted at temperatures above 65°C (150°F) to help shiny paint surface, increase grip surface paint layer.

- Micrometer measuring the edge of mechanical cans is designed to be compact, sophisticated, and highly accurate.

- Micrometer measuring the edge of the mechanical can  with clear divisions, greatly improves the reading error of the measurement index.

Note when using micrometer to measure the edge of the can
-  Panme measuring the edge of mechanical cans should be stored in dry places, avoiding moisture and high humidity, regularly checked for accurate calibration.

- Do not use micrometer to measure rotating or moving parts, when using it, avoid dropping the micrometer on the floor, workshop, tape, hard surfaces.

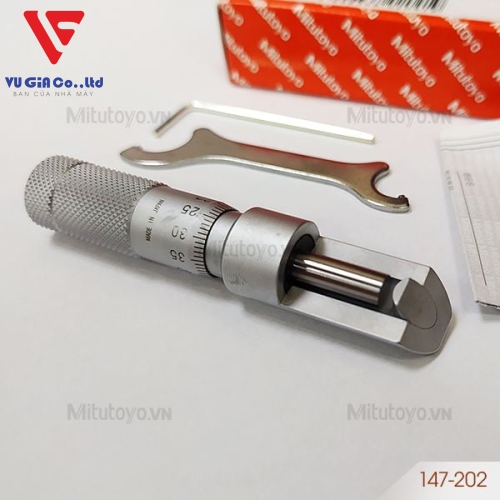

Micrometer for measuring the edge of mitutoyo cans 147-202

- Always keep the micrometer free of dirt and dust on the two probes, the surface of the two probes before and after use must be cleaned with a clean, dust-free paper or use RP7 solution to clean the two probes afterwards. Use clean, dust-free paper to clean.

- Do not put micrometer together with other repair and processing tools to avoid damage due to collision. After use, put the micrometer in the correct position in the box for storage.
