Mitutoyo 422-270-30 external digital micrometer (0-25mm)

Specifications
Produced by Mitutoyo
Model 422-270-30
Made in Japan
Measuring range 0 - 25mm
Accuracy ±3µm
Visibility 0.001mm

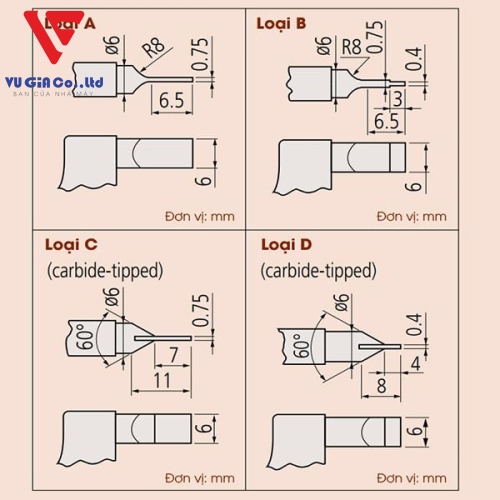

Probe type Type C  (see figure on figure)
Electronic external micrometer Mitutoyo
Digital outside micrometers (Digimatic outside micrometers) is a length measuring instrument based on the principle of using screw threads to measure linear distances originating from Gascoigne's invention in 1638. Mitutoyo electronic external micrometers are manufactured according to modern Japanese technology with IP65 waterproof standard, many options such as measuring range, accuracy, measurement speed, display in mm-inch units, how to enter data after measuring ... suitable with different customer requirements.

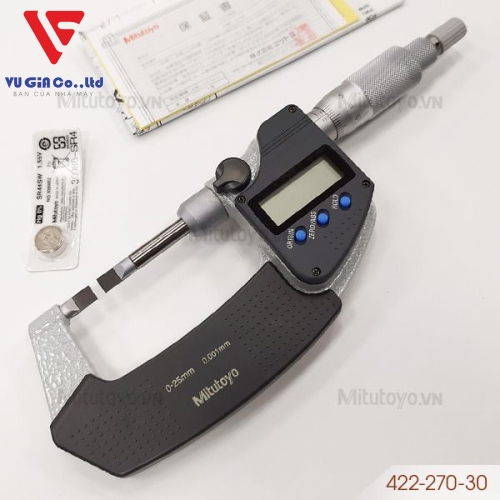

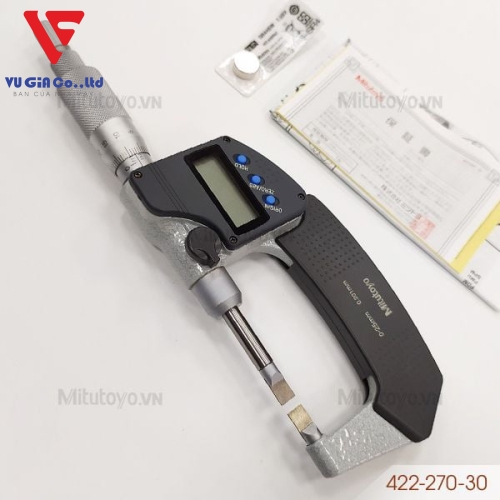

Electronic micrometer measured outside mitutoyo 422-270-30

Mitutoyo 422-270-30  external micrometer is compactly designed with a measuring range of 0 - 25mm metric, 0.001mm display with ±3 μm accuracy, wear-resistant carbide coated tip. The product is suitable for measuring the length, outside diameter of round parts, material thickness in technical industries such as construction, mechanical engineering, molds, automobiles, furniture, ... with high precision. high precision.

Advantages Electronic external meter
- Mitutoyo 422-270-30 electronic external micrometer uses a rotating electromagnetic induction reader combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without adjusting or setting. reset the ruler.

- Mitutoyo electronic external micrometer is designed to be compact and sophisticated, the two measuring heads are coated with anti-wear (carbide) coating to increase durability and use time.

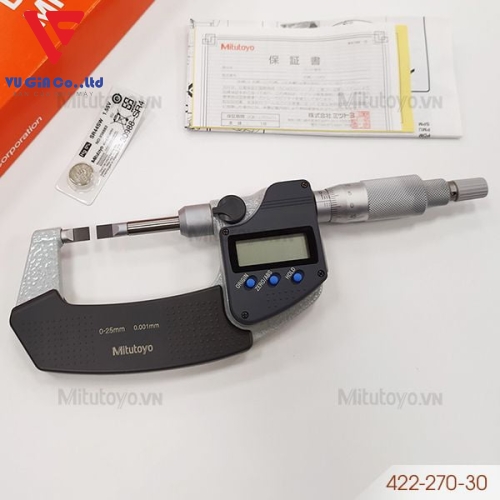

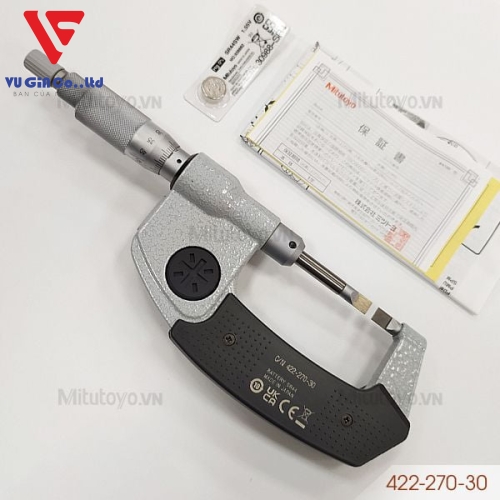

Electronic micrometer measured outside mitutoyo 422-270-30

- Mitutoyo electronic external micrometer is equipped with a slide for constant measuring force to help you easily use the device, accurate measurement results, high measurement stability.

- Standard shaft and accessories are convenient to calibrate the standard parameters for the Micrometer easily to help the device operate stably, ensuring measurement accuracy.

- Mitutoyo electronic external micrometer uses 1 battery SR44with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic box or wood helps protect the ruler better, convenient in storage and transportation.

Electronic external micrometers need to be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.
