Electronic micrometer external measurement Mitutoyo 293-336-30 (25-50mm/1-2'')

Specifications
Produced by Mitutoyo
Model 293-336-30
Made in Japan
Measuring range 25 - 50mm / 1 - 2''
Accuracy ±0.00005'' / ±1µm
Display 0.00005''/ 0.001mm
Connection port There is a data output SPC port
Electronic external micrometer Mitutoyo
Digital outside micrometers (Digimatic outside micrometers) is a length measuring instrument based on the principle of using screw threads to measure linear distances originating from Gascoigne's invention in 1638. Mitutoyo electronic external micrometers are manufactured according to modern Japanese technology with IP65 waterproof standard, many options such as measuring range, accuracy, measurement speed, display in mm-inch units, how to enter data after measuring ... suitable with different customer requirements.

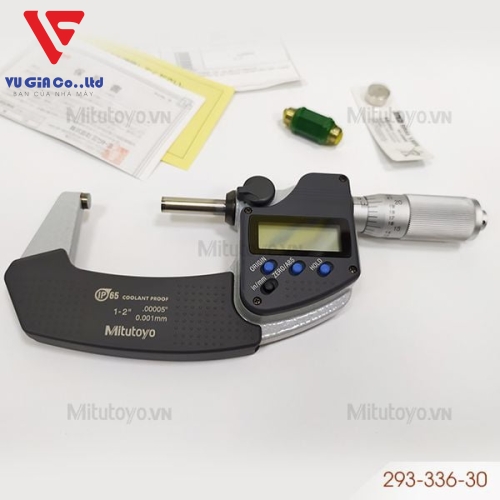

Electronic micrometer measured outside mitutoyo 293-336-30 taken at Mitutoyo.VN

Mitutoyo 293-336-30  external micrometer is compactly designed with measuring range 25 - 50mm / 1 - 2'' measuring 2 metric and inch systems, display ±0.00005''/ 0.001mm with accuracy ±0.00005 '' / ±1µm IP65 waterproof suitable for measuring the length, outside diameter of round parts, material thickness in engineering industries such as construction, mechanical engineering, molds, automobiles. , furniture, …with high precision.

Advantages Electronic external meter
- Mitutoyo 293-336-30 electronic external micrometer uses a rotating electromagnetic induction reader combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without adjusting or setting. reset the ruler.

- Mitutoyo electronic external micrometer is designed to be compact and sophisticated, the two measuring heads are coated with anti-wear (carbide) coating to increase durability and use time.

- Mitutoyo electronic external micrometer is equipped with a slide for constant measuring force to help you easily use the device, accurate measurement results, high measurement stability.

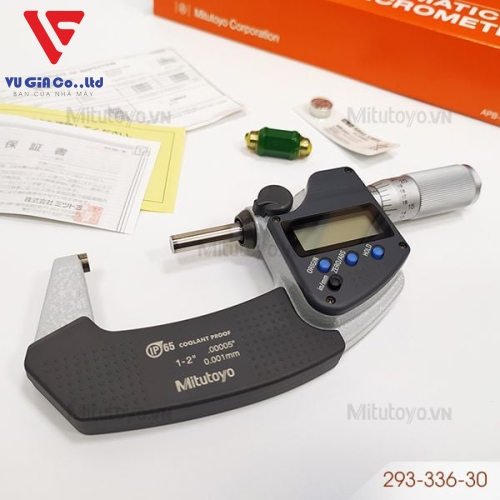

Electronic micrometer measured outside mitutoyo 293-336-30 taken at Mitutoyo.VN

- Standard shaft and accessories are convenient to calibrate the standard parameters for the Micrometer easily to help the device operate stably, ensuring measurement accuracy.

- Electronic external micrometer uses 1 battery mitutoyo SR44battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic box or wood helps protect the ruler better, convenient in storage and transportation.

Electronic external micrometers need to be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.
