Radius gauge 32 blades Mitutoyo 186-106 (7.5-15mm)

Specifications
Produced by Mitutoyo
Model 186-106
Made in Japan
Measuring range 7.5 - 15 mm
Accuracy ±0.04 mm
32 rulers 7.5 - 15 mm in 0.5 mm
Curve type 180⁰
Radius gauge Mitutoyo

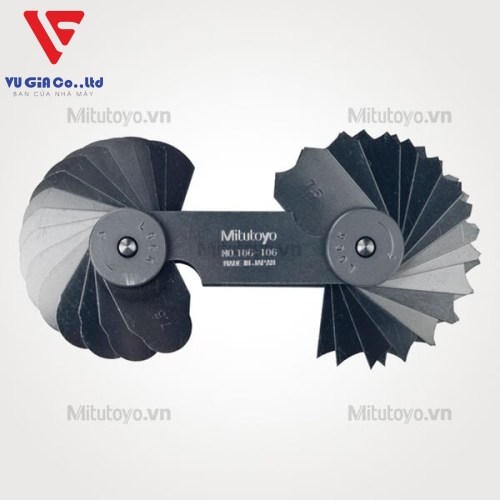

Radius gauge Mitutoyo 186-106 includes 32 leaves, measuring range: 7.5 - 15 mm is a standard parameter of radius manufactured by modern Japanese technology for the most accurate and reliable In the world, compact design, high accuracy is used to quickly check the inner radius or outer radius of details in technical industries such as construction, mechanical engineering, molds, automobiles, etc. interior, …

Mitutoyo 186-106 (7.5-15mm) 34-blade radius gauge

Mitutoyo 32 blade radius ruler 186-106

Advantages of measuring radius
The semi-hermetic gauge is made of high quality carbon steel to reduce wear and prolong the life of the gauge.

Mitutoyo 186-106 (7.5-15mm) 34-blade radius gauge

Mitutoyo 186-106 32 leaf radius gauge taken at Mitutoyo.VN

- Units mm and inches, shape, radius measurement depending on the needs of customers.

- Each card has easy-to-use leaf symbols marked with its radius.

- Steel cover protects the foil during use and storage, has a locking screw to fix the measuring leaves or disassemble easily, convenient to move and store.
