Mitutoyo 2046AB mechanical odometer (0-10mm)

Specifications
Produced by Mitutoyo
Model 2046AB
Made in Japan
Measuring range 0 - 10mm
Graduation 0.01mm
Accuracy ±0.013mm
Watch Style Flat back
What is a mechanical chronograph?
A mechanical gauge is a retrograde linear length measuring instrument based on a rack-gear structure into the rotation of a dial dial with fixed divisions. Mitutoyo mechanical chronometers are manufactured using modern Japanese technology for the most accurate and reliable in the world, highly shock resistant rack-gear mechanism with options such as approx. measurement, accuracy, variety of styles, units of mm or inches to suit various customer requirements.

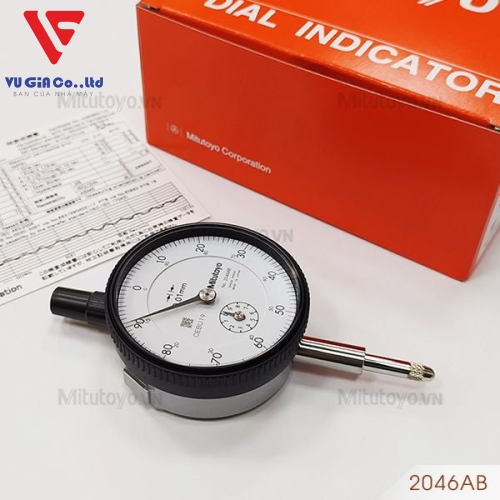

Mitutoyo mechanical meter 2046AB

Mechanical odometer 2046AB taken at Mitutoyo.VN

The Mitutoyo 2046AB mechanical meter is compactly designed with a measuring range of 0 - 10mm, division 0.01mm with an accuracy of ±0.013mm, measuring 1 metric system, compact design, anti-glare design face With scratch and dirt resistant surface which improves reading accuracy.

Mechanical gauges are used to measure roundness, run-out, Oval, displacement, surface flatness, depth or measure inner diameter, measure material thickness in engineering industries such as construction, mechanical engineering. making machines, molds, automobiles, electronic components, furniture.

In addition, the mechanical gauge helps to increase the accuracy of the high gauge as well as the materials that require low stiffness when combined with a high gauge or a dedicated base for the dial.

Notes when using the clock
- When choosing a mechanical meter to ensure the correct measuring range and accuracy, the gauge measurement interval is always larger than the change in the size of the part to be checked and the accuracy is smaller than the accuracy of the part to be checked. .

- Before using to check the accuracy, return of the probe shaft and the measuring needle manually move the probe shaft to ensure that the main shaft moves smoothly, the measuring hands are fully operational after removing the hand. Ensure that the probe shaft and the measuring hands are returned to their original position within the allowable measuring range of the dial.

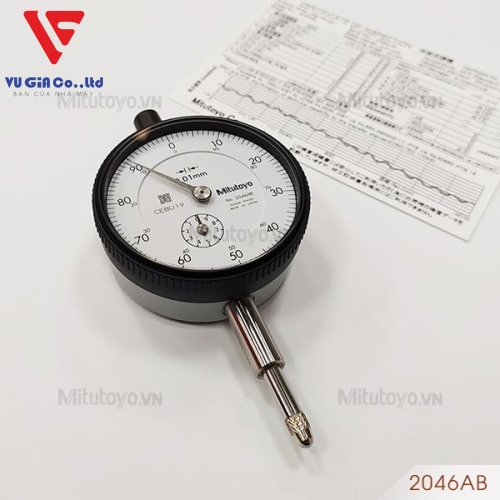

Mitutoyo mechanical meter 2046AB

Mechanical odometer 2046AB taken at Mitutoyo.VN

- When using a mechanical gauge, the gauge must be placed on a dedicated stand or a separate accessory, ensuring that the measuring head is always in contact with the part to be measured, the fixed position of the gauge and the dedicated holder. or individual accessories remain unchanged during the transducer measurement.

- When using the dial gauge, be very gentle, avoid dropping the dial on the floor, workshop floor, machine tape, hard surfaces. Do not manually move the probe shaft beyond the allowable measuring range of the dial.

- Do not leave the gauge in a humid place or put it together with other repair and processing tools to avoid damage due to collision. After using clean the main shaft and the dial face clean, put the dial in. in the correct position in the container for storage.
