Mitutoyo 547-360 Electronic Thickness Gauge (0-10mm)

Specifications
Produced by Mitutoyo
Model 547-360
Made in Japan
Measuring range 0-10 mm
Accuracy ±20 μm
Display 0.01 mm
Electronic thickness gauge
The Mitutoyo 547-360 Electronic Thickness Gauge is a kind of gauge based on the Mitutoyo digital gauge working principle designed to quickly and efficiently measure small object sizes with accuracy. High.

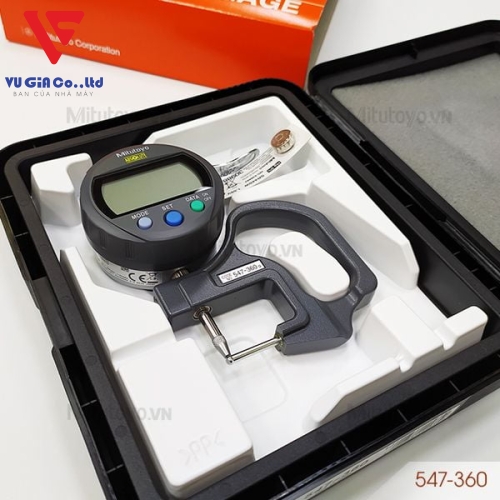

Thickness Gauge 547-360

Thickness gauge 547-360 taken at Mitutoyo.VN

Electronic thickness gauge 547-360 has high accuracy, measuring range 0-10mm Metric measurement. Easy-to-use 0.01mm display, accuracy: ±20μm for accurate measurement of the thickness of paper, PE film, film, wire, sheet metal and other similar materials.

Advantages of Mitutoyo electronic thickness gauge
The Mitutoyo 547-360 Electronic Thickness Gauge has a carbide coated measuring head, an adjustable handle for left-handed users, and a lightweight design that makes it easy to use the device. , accurate fast measurement results, high measurement stability.

The Mitutoyo electronic thickness gauge uses an electromagnetic induction reader with a linear encoder on the body combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without any adjustment. adjust or reset the ruler.

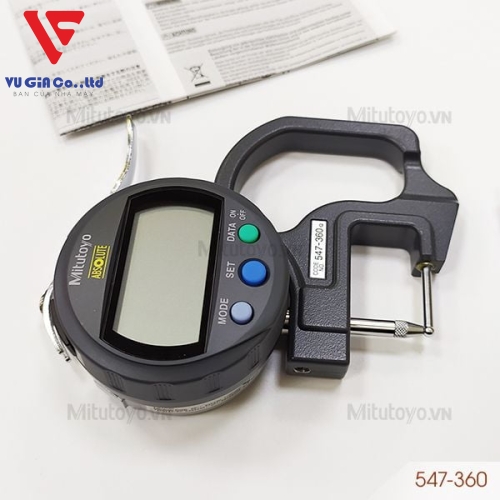

Thickness Gauge 547-360

Thickness gauge 547-360 taken at Mitutoyo.VN

The LCD screen is designed with high aesthetics, the dial can be adjusted to rotate 330º, the character height of 11.0 mm improves readability, The obtained measurement results are displayed on the electronic screen clearly. Clear results help users easily read the results quickly.

Electronic thickness gauge uses 1 Mitutoyo SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic box Helps protect the ruler better, convenient in storage and transportation.

Notes when using electronic thickness gauge.
- Thickness gauge should be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not use the ruler to measure when the object is rotating or moving, when using it, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.

- Always keep the ruler free of dirt and dust on the two measuring heads, the surface of the two measuring heads before and after use must be cleaned with a clean, dust-free paper or use RP7 solution to clean the two probes afterwards. Use clean, dust-free paper to clean.

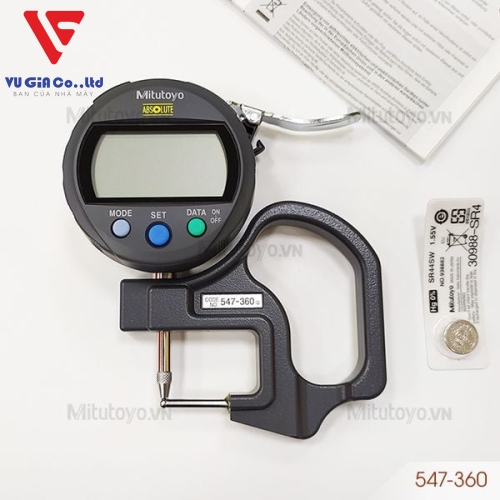

Thickness gauge 547-360 taken at Mitutoyo.VN

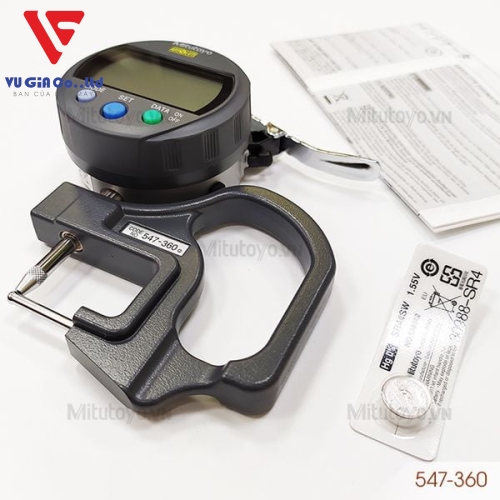

Thickness gauge 547-360 taken at Mitutoyo.VN

- Do not use the ruler in an environment with water or oil that directly affects the ruler, in case the ruler gets wet with water or oil, you must remove the battery cover, remove the battery immediately and contact the company's staff directly to check. cleaning, re-evaluating the stability of the ruler.

- When not in use, press the On/Off button to turn off the power, use a thin film to separate the two measuring heads to avoid direct contact, put the ruler in the correct position in the plastic box for storage. When the screen dims with the letter B flashing, the battery is almost dead and you must replace the battery for the ruler.
