Granite base for Mitutoyo 215-150-10 odometer
- Product code: 215-150-10
Warranty 12 months
The granite base of the Mitutoyo 215-150-10 gauge is used to fix the measurement, giving the most accurate results. Adjustment range: 110mm. Use for odometer shaft diameter: 8mm, 9.53mm
-
2335
-
Contact us
Specifications
Produced by Mitutoyo
Model 215-150-10
Made in Japan
Used to hold shaft diameter 8 mm, 9.53 mm
Adjustment range 110 mm
Cylinder diameter 30 mm
Dimensions of granite base 120 x 180 x 50 mm
Granite base for clock

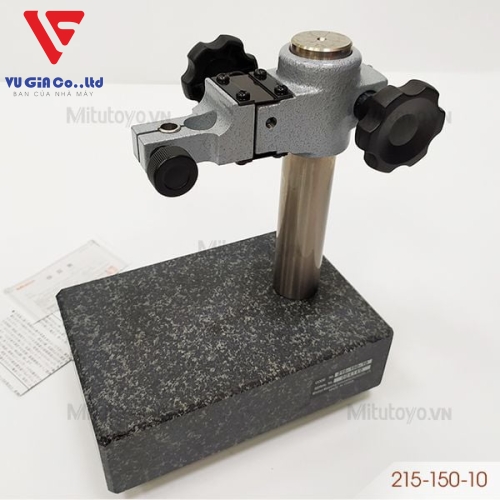

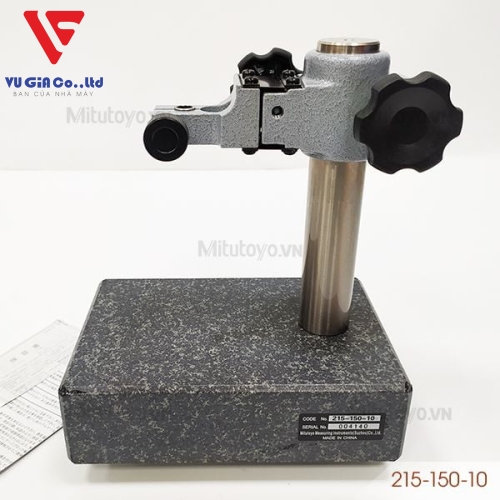

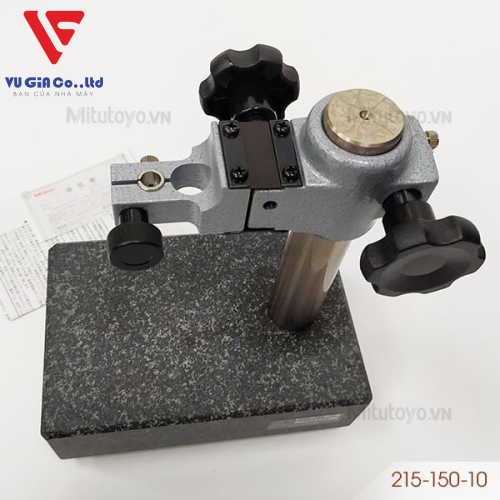

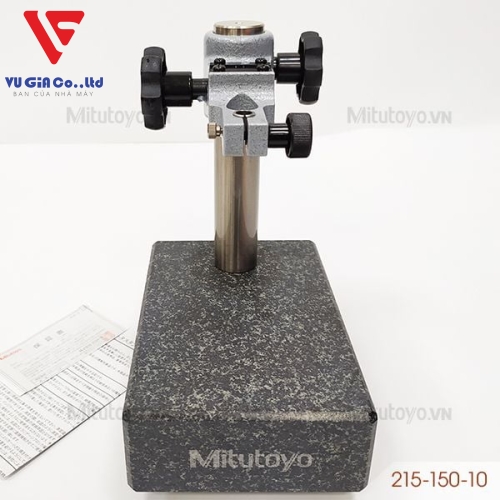

The Mitutoyo 215-150-10 gauge granite base is used to mount the gauge when taking measurements. The base with dimensions of 120 x 180 x 50 mm is made of ground granite with a flatness of 3μm. The up and down adjustment range of the post is 110mm with a diameter of Ø30mm. The product has a shaft diameter of Ø8 mm, Ø9.53 mm.
Granite base for Mitutoyo 215-150-10 . odometer
Granite base for Mitutoyo 215-150-10 counters taken at Mitutoyo.VN
