Mitutoyo 7007-10 odometer stand
- Product code: 7007-10
Warranty 12 months
Mitutoyo 7007-10 base is used to fix the odometer when taking measurements, giving the most accurate results. Mountable for counters with shaft diameter: 8 mm, 0.953 mm
-
2392
-
Contact us
Specifications
Produced by Mitutoyo
Product code 7007-10
Gauge holder with shaft diameter 8 mm, 0.953 mm
Stand Dimensions (WxDxH) 168x110x45 mm
Cylinder height / Cylinder diameter 160mm / 30mm
Anvil face size 90x90 mm (square anvil face)
Mitutoyo odometer stand
The Mitutoyo mounting bracket is a measuring instrument that aids in measuring. This device will help users fix the gauges in a fixed position, making measuring and checking equipment easier and more efficient, providing the fastest and most accurate results.

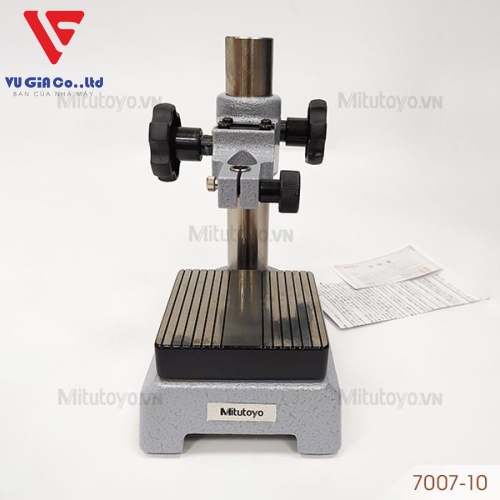

Mitutoyo 7007-10 . odometer stand
Mitutoyo stand 7007-10 was taken at Mitutoyo.VN
The Mitutoyo 7007-10 gauge base can be used for gauges with shaft diameters: Ø8 mm, Ø0.953 mm. Anvil face size: 90x90 mm (square anvil face) and has a surface flatness of 1.3 µm.

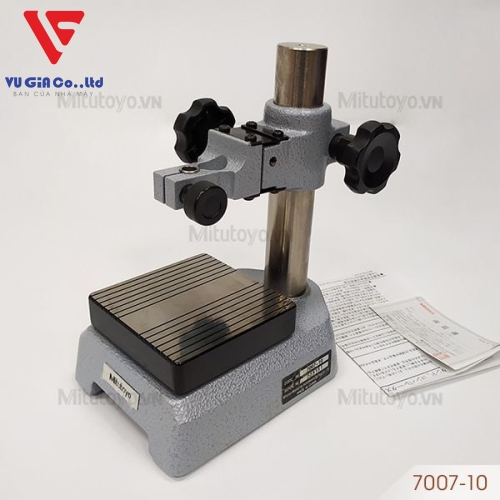

Mitutoyo 7007-10 . odometer stand
Mitutoyo stand 7007-10 was taken at Mitutoyo.VN
