Mitutoyo 510-121 external micrometer (0 - 25mm)

Specifications
Produced by Mitutoyo
Model 510-121
Made in Japan
Measuring range 0 - 25 mm
Accuracy ±0.06 mm
Graduation 0.001 mm
Micrometer outside of Mitutoyo watches
External micrometer is a type of length measuring instrument based on the operating principle of micrometers and mechanical gauges. Mitutoyo external micrometers are used for measuring mass-produced products or components. with measurement tolerances within a limited range.

Micrometer Mitutoyo 510-121

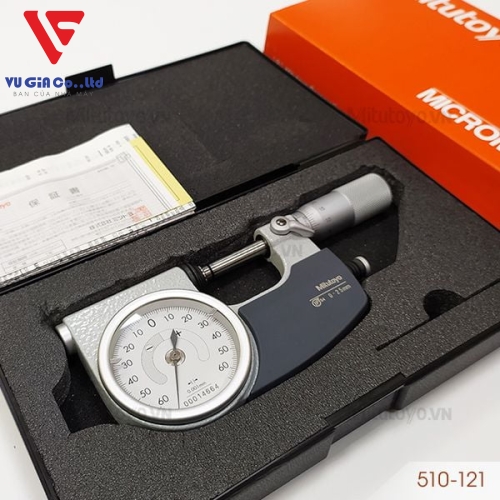

Micrometer products Mitutoyo 510-121 taken at Mitutoyo.VN

The 510-121 external meter micrometer is compactly designed with a measuring range of 0 - 25mm, division 0.001mm. Meter accuracy: ±0.06mm, with tolerance adjustment on the meter ±(0 - 0.06mm) easy to set test measurement tolerance.

Advantages of the meter outside the clock
Mitutoyo meter external micrometer is manufactured on modern Japanese technology with protection level IP:54

Easy to use with one-handed operation, the probe receiver push button is convenient for left- or right-handed users.

micrometer Mitutoyo 510-121

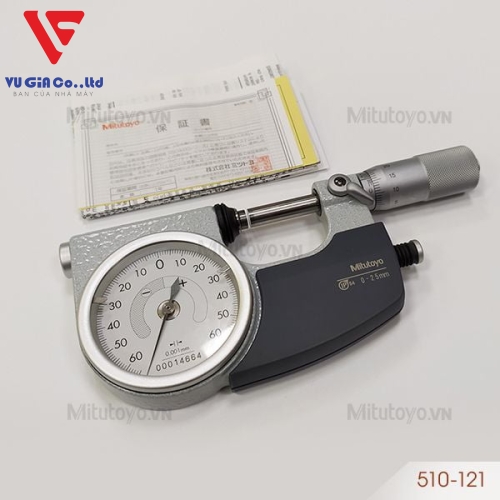

Micrometer products Mitutoyo 510-121 taken at Mitutoyo.VN

The Mitutoyo meter external micrometer is equipped with a push button to receive the probe with a measuring force of 5-10N to help you easily use the device, accurate measurement results, high measurement stability.

The large dial with clear divisions greatly improves the measurement error reading.

Note when using micrometer outside the watch
- Clock face dial needs to be stored in a dry place, away from moisture and high humidity, regularly checked for correct calibration.

- Do not use micrometer to measure rotating or moving parts, when using it, avoid dropping the micrometer on the floor, workshop, tape, hard surfaces.

micrometer Mitutoyo 510-121

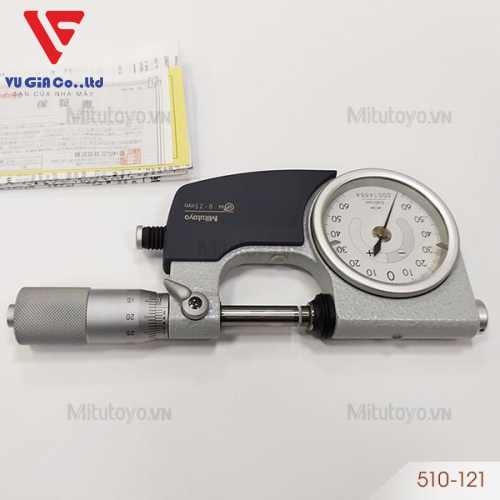

Micrometer products Mitutoyo 510-121 taken at Mitutoyo.VN

- Always keep the micrometer free of dirt and dust on the two probes, the surface of the two probes before and after use must be cleaned with a clean dust-free paper or use RP7 solution to clean the two probes afterwards. Use clean, dust-free paper to clean.

- Do not put micrometer together with other repair and processing tools to avoid damage due to collision. After use, put the micrometer in the correct position in the box for storage.
