Đồng hồ đo độ sâu điện tử Mitutoyo 547-251A (0-200mm)

Specifications
Produced by Mitutoyo
Model 547-251A
Made in Japan
Measuring range 0 - 200mm
Display 0.01mm
Accuracy ±5μm
Note Base size (width x thickness): 63.5×16mm
What is an electronic depth gauge?
Electronic depth gauge is a kind of gauge based on the working principle of Mitutoyo electronic gauges, designed to quickly measure the depth, roughness, flatness of the parts. efficient with high accuracy.

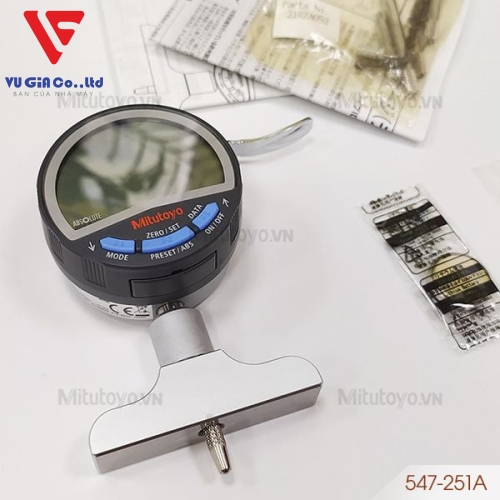

Mitutoyo 547-251A electronic depth gauge taken at Mitutoyo.VN

Electronic depth gauge 547-251A  is compactly designed with 5 easily removable connectors, has a measuring range of 0-200 mm, a display of 0.01 mm, accuracy: ±5 µm. Needle depth gauge 1.5mm radius with base size (width x thickness): 63.5×16mm. The base surface is designed with measuring instrument steel with low coefficient of thermal expansion, flatness and high gloss, so the device can move gently and provide accurate measurement results, high measurement stability. .

Advantages of electronic depth gauges
- Electronic depth gauge Mitutoyo 547-251A manufactured by modern Japanese technology for the most accurate and reliable in the world, with many options such as measuring range, accuracy, multiple styles, mm or inch units to suit different customer requirements.

- Electronic depth gauge Mitutoyo uses an electromagnetic induction reader with a linear encoder on the body combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without needing to adjust or reset the ruler.

- LCD screen is designed with high aesthetics, the watch face can be adjusted to rotate 330º, the character height of 11.0 mm improves readability, The achieved measurement results are displayed on the electronic screen. Clear results help users easily read results quickly.

- LCD display is designed with high aesthetics, the dial can be adjusted to rotate 330º, the character height is 11.0 mm for improved readability. The measured results are displayed on a clear electronic screen to help users easily read the results quickly.

Note when using electronic depth gauges
- When choosing an electronic depth meter to ensure the correct measuring range and accuracy, the measuring range is always larger than the change in the size of the part to be checked and the accuracy is smaller than the accuracy of the part to be checked. check.

- Electronic depth gauges need to be stored in dry places, away from moisture and high humidity, regularly checked for accurate calibration, not with other repair and processing tools to avoid damage due to collision.

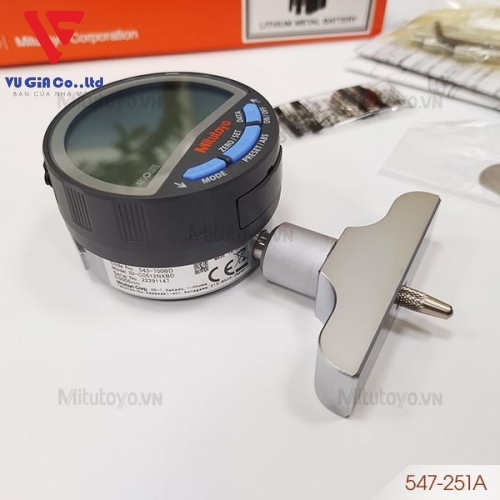

Mitutoyo 547-251A electronic depth gauge taken at Mitutoyo.VN

- When using the electronic depth gauge, be very gentle, avoid dropping the dial gauge on the floor, workshop, tape, hard surfaces. Do not manually move the probe shaft beyond the allowable measuring range of the dial.

- Do not use the electronic depth gauge in an environment with water or oil that directly affects the electronic gauge, in case the electronic gauge is flooded with water or oil, the battery cover must be removed and the battery removed immediately. immediately and directly contact the company's staff to check the hygiene and re-evaluate the stability of the ruler.

- Always keep the ruler free from dust and dirt on the measuring head, the measuring base surface before and after use must be cleaned with clean dust-free paper or clean with RP7 solution.

- When not in use, press the On / Off button to turn off the power to save battery, put the meter deep into the correct position in the carrying case for storage.
