TANK fan - 3076
- Product code: TANK-3076
Power: 250 W
Air flow: 15660 m3/min
Dimensions: 895 x 350 x 970 mm
Weight: 25 kg
Made in Viet Nam
Warranty: 2 years
-
1407
-
6.008.000₫
INTRODUCTION TO TANK INDUSTRIAL FAN
The Tank Fan is a Dasin brand product, designed and used for cooling low-level locations. Therefore, it can be said that Tank belongs to the type of high-capacity industrial floor fan.
Dasin currently offers 3 Tank fan models: Tank-2460, Tank-3076 and Tank-40100 including both 220V and 380V power sources.
TANK INDUSTRIAL FAN - 3076

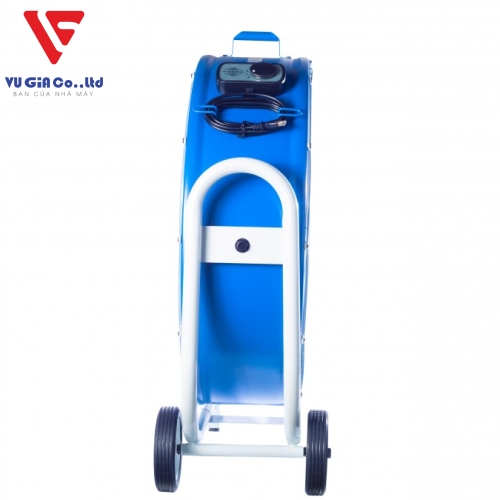

There is a handle on the top of the machine body.
Adjustment button on the body of the machine
The 2 wheel base makes it easy to move on any type of floor made of a variety of materials.
Technical specification - Technical specification

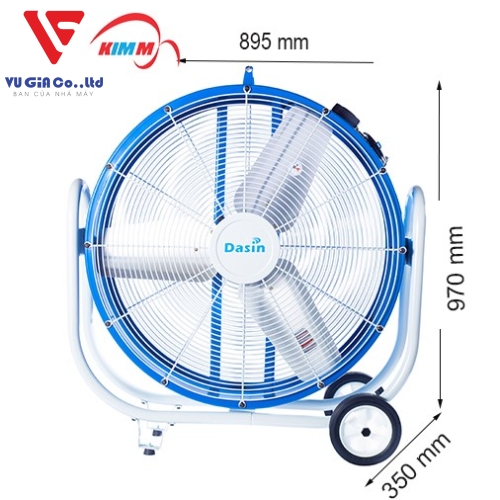

Dimensions: 895 x 350 x 970 mm
Wing diameter: 76
Control speed: 3
Wing rotation per minute: 920 RPM
Air flow: 261 m3/min
Wind speed: 436 m/min
Power: 250 W
Voltage: 220 V
Current intensity: 1.51 A
Static weight: 25 kg
Made in Viet Nam
Warranty: 2 years
INTRODUCING DASIN FAN BRAND
Dasin industrial fans are a product line manufactured in accordance with ISO 9001-2008 standards, inspected and certified by the Vietnam Bureau of Standards and Metrology in Ho Chi Minh City with the entire production process and technology. and components come entirely from Taiwan.
Products under the Dasin brand are manufactured with motors that use 100% copper wire, possessing thousands of pure copper wires dipped in a layer of varnish for better insulation between the motor and other parts. Furthermore, with a motor using such copper wire, the fan will have a more stable air flow during operation than other products.
The difference that makes the Dasin fan brand is the best ability to prevent motor fires thanks to fuse technology to protect the motor or TC temperature sensor with the ability to automatically stop operating if the sensor generates too much heat. necessary level.
ADVANTAGES OF TANK INDUSTRIAL FAN
Dasin's Tank industrial fan has a different shape than other floor fans on the market, so it can promote many special capabilities that other types do not have. As follows:
Engine
Operates durably in many different environments thanks to the sealed motor design.
In addition, the fan motor is completely wrapped with copper wire to help save electricity and limit copper wire breakage. At the same time, it is equipped with a thermal sensor TC to help protect internal components when operating for many hours causing the motor to get hot.
Operate efficiently
With a design of 3 large blades similar to the blades of a ceiling fan, the Tank has the ability to widely cool around the area where the fan operates. At the same time, it can also adjust different tilt angles up to 180 degrees for use in appropriate positions.
Durable
Manufactured from high-quality raw materials, Dasin products are often more durable than conventional fans. Average lifespan is 6 to over 10 years depending on operating environment and usage level.
Compact design, easy to move
The tank is designed very neatly, the thickness is not large, helping to save space during use and storage. In addition, this industrial floor fan is also equipped with 2 wheels and 2 sturdy legs, so it can be moved anywhere easily even though it is not small in weight.
HOW TO USE
How to use Tank industrial fans?
The product is packaged in its entirety and does not require assembly or installation, so when using it, you just need to unplug the cord and plug in the fan.
Next, adjust the fan to an angle suitable for the space and object that needs to be cooled and select the speed. With the 2-phase Tank-2460 and Tank 3076, there will be 3 speeds 1 - 2 - 3 corresponding to the level of weak - medium strong - strong, while the remaining codes only operate with 1 single speed.
