KSM Industrial Fan - 3076H

INTRODUCTION TO KSM INDUSTRIAL FAN – 3076H
KSM Industrial Fan - 3076H is the standing fan with the largest capacity among industrial standing fans. Suitable for places with large spaces such as restaurants, cafes, halls, warehouses, factories,...

KSM Industrial Fan - 3076H is a product of the company Dasin, with modern components imported from Taiwan, the motor uses 100% pure copper wire to help save electricity and provide stable air flow and high performance. The best protection against motor fire is that the thermal sensor fuse (TC) automatically stops working if the sensor generates excessive heat.

Technical specification - Technical specification
Wing diameter: 76 cm

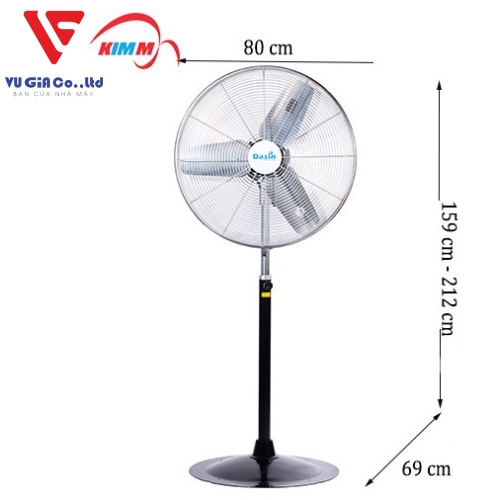

Dimensions: 800 x 690 x 1590 ~ 2120 mm
Provincial weight: 32.5 kg
Control speed: 2
Wing rotation/minute: 1,375
Wind speed: 545 m/min
Air flow: 391 m3/min
Power: 525 W
Voltage: 220 V
Current intensity: 2.41 A
Components: Taiwan
Made in Viet Nam
Warranty: 2 years

Introducing the Dasin fan brand
Dasin industrial fans are a product line manufactured in accordance with ISO 9001-2008 standards, inspected and certified by the Vietnam Bureau of Standards and Metrology in Ho Chi Minh City with the entire production process and technology. and components come entirely from Taiwan.

Products under the Dasin brand are manufactured with motors that use 100% copper wire, possessing thousands of pure copper wires dipped in a layer of varnish for better insulation between the motor and other parts. Furthermore, with a motor using such copper wire, the fan will have a more stable air flow during operation than other products.

The difference that makes the Dasin fan brand is the best ability to prevent motor fires thanks to fuse technology to protect the motor or TC temperature sensor with the ability to automatically stop operating if the sensor generates too much heat. necessary level.

Advantages of industrial fan KSM - 3076H
The fan is highly durable and does not require regular maintenance.
The fan base design is very sturdy, does not fall often.
The entire product is plated and electrostatically painted to prevent rust.
Saves more electricity than other products on the market with the motor completely wound with unadulterated copper wire.
Smooth operation with shafts using Japanese bearings.
Prevents motor fire with TC sensor, can automatically turn off fan operation when the temperature reaches 120 degrees.
Beautifully designed, sturdy fan cage, safe to use.
