CHEMICAL TUBE RAMSET M12

CHEMICAL DESCRIPTION RAMSET M12 TUBE

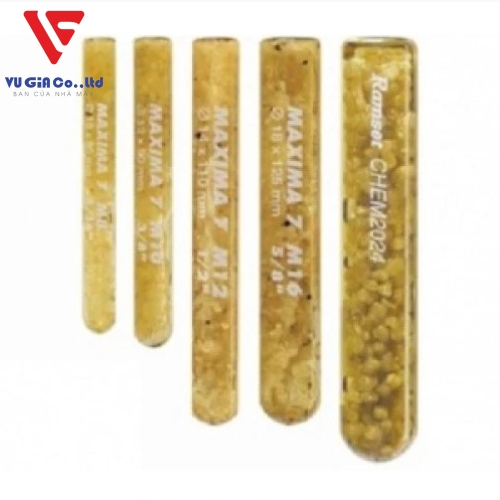

Ramset M12 capsule chemical is a quick-setting chemical to attach M12x160 threaded rods to concrete to form M12x160 chemical bolts.

APPLICATION OF RAMSET M12 TUBE CHEMICAL
Structural steel anchors (e.g. racks, guard rails, fences and gates)
Anchoring in industries (e.g. machinery, elevators, cranes and industrial equipment)
Anchoring applications requiring dynamic loads or earthquake resistance
Securing items along the road and in the tunnel (e.g. impact and noise barriers, overhead catenary systems)
Anchoring at the edge of the slab or on narrow supports (e.g. beams, balconies)
ADVANTAGES OF RAMSET M12 TUBE CHEMICAL
Faster setting time than epoxy-based bottle chemicals using a pump gun (About 30 minutes compared to 8 hours)
Stable construction is easier than with epoxy-based bottled chemicals using a pump gun because a capsule is fixed to a threaded rod and there is no need to worry about pumping enough chemicals.
However, we must also mention the disadvantages that are more expensive and not as flexible as using pump-gun chemicals.
CHEMICAL CONSTRUCTION OPERATION FOR RAMSET M12 TUBE
Step 1: Drill a 14mm hole, 110mm deep in the concrete
Step 2: Use a brush and dust blower to clean the bore
Step 3: place Ramset M12 capsule chemical into the drill hole
Step 4: Install the threaded rod into the drilling machine through a tool called the setting tool and then drill the threaded rod to break the sleeve
Step 5: Wait for the capsule chemical to set and then install the load. Normally, the setting time to reach maximum strength is 30-40 minutes
CHEMICAL FORCE SPECIFICATIONS RAMSET M12 TUBE TUBE USED WITH M12x160 THREADED ROD GRADE 5.8
Traction force: 20KN corresponding to a weight of 2 tons
Cutting force: 20KN corresponding to a weight of 2 tons
The above parameters are recommended when used with C20/25 basic concrete

CHEMICAL FORCE SPECIFICATIONS RAMSET M12 TUBE TUBE USED WITH M12x160 THREADED ROD GRADE 8.8
Traction force: 24KN corresponding to a weight of 2.4 tons
Cutting force: 24KN corresponding to a weight of 2.4 tons
The above parameters are recommended when used with C20/25 basic concrete
