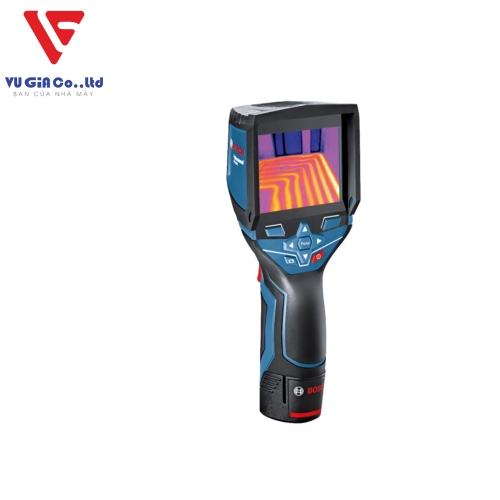

GTC 400 C PROFESSIONAL

SPECIFICATIONS
Additional data
Measuring range
-10°C to +400°C
Measure IR accuracy
± 3.0°C* (*additional deviation depending on use)
Battery voltage
twelfth
Thermal sensor (NETD)
<50 mK
Resolution
0.1 °C
IR sensor size
160x120 px
Number of measuring points
19,200
Field of view (FOV)
53x43°
Power supply and operating time
4 1.5V LR6 (AA) batteries 1 12V GBA battery 1 10.8V GBA battery
Frame buffer (number of images)
500
Memory type
Internal memory
Image file format
.jpg
Data transmission
MicroUSB, Wi-Fi
Protection level
IP 53
Weight
0.54 kg
Screen size
3.5"
Operating temperature
-10 – 45 °C
Storage temperature
-20 – 70 °C
Focal distance, min
0.3 m
Measurement application
Thermal imaging
GTC 400 C PROFESSIONAL: MORE INFORMATION
Outstanding features of the product
The thermal camera GTC 400 C Professional measures and visualizes temperature differences in seconds and easily records the results. The Bosch Thermal App records and relays measured values quickly. Picture-in-picture technology overlays realistic detailed images and thermal sensor images (19,200 px), providing high-quality images and clear localization of temperature differences. With a dual power system, a 12V Li-Ion battery or standard alkaline battery is the suitable power supply.

Devices & Applications
This system is ideal for testing insulation, heating systems, heat flow and for detecting overheated components.

Additional information
The intelligent GTC 400 C Professional is suitable to support a wide range of professionals at every project stage: From advising the client by displaying clear images of the situation to preparatory work such as site inspection wiring installation, through project documentation and even follow-up work. Do not use the measuring instrument for human medical purposes.
