GSB 18V-90 C PROFESSIONAL

SPECIFICATIONS
Additional data
Torque (soft/hard/maximum) 36/64/- Nm
No-load speed (1st gear / 2nd gear) 0 – 630 / 0 – 2,100 rpm
Battery voltage 18.0 V
Chuck capacity, max/min 1.5 / 13 mm
Weight excluding battery 1.2 kg
Torque settings 21
Drilling diameter
Maximum drilling diameter on wood 68 mm
Maximum drilling diameter on steel 13 mm
Screw diameter
Maximum screw diameter 12 mm
Total vibration value (Drilling on metal)
The dispersion value fluctuates ah 1.5 m/s²
Uncertainty K 1.2 m/s²
Total vibration value (Dynamic drilling on masonry)
Dispersion value fluctuates ah 11.8 m/s²
Uncertainty K 1.5 m/s²
Information about noise/vibration
Sound pressure level 99 dB(A)
Sound power level 88 dB(A)
Uncertainty K 5 dB
Drilling in metal
The dispersion value fluctuates ah 1.5 m/s²
Uncertainty K 1.2 m/s²
Dynamic drilling on masonry blocks
Dispersion value fluctuates ah 11.8 m/s²
Uncertainty K 1.5 m/s²
The A-rated noise level of common power tools is as follows: Sound pressure level 99 dB(A); Sound power level 88 dB(A). Uncertainty K = 5 dB.

GSB 18V-90 C PROFESSIONAL: MORE INFORMATION
Outstanding features of the product

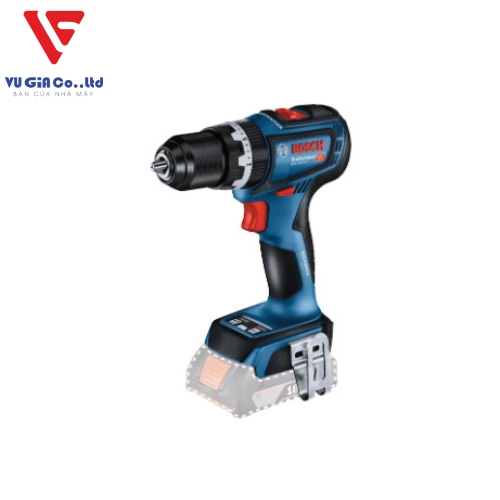

GSB 18V-90 C Professional is a powerful cordless impact drill with a brushless motor that delivers top performance with 64Nm torque and 2,100rpm speed. The length of the compact tool head is 175mm for the most convenient machine operation. The sturdy 13mm metal chuck ensures high torque transmission for every job. The impact drill gives you great control over the tool both in terms of increased user protection and tool protection: The HMI offers a switchable Kickback Control function to reduce the risk of tissue reaction -The motor rotates suddenly in a closed situation. The switchable Precision Clutch function stops override when a preset torque level is reached and thus reduces clutch wear and resulting noise.

Devices & Applications
This tool is used to drill wood up to a maximum diameter of 68mm and steel and masonry up to 13mm respectively. GSB 18V-90 C Professional is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V System).
