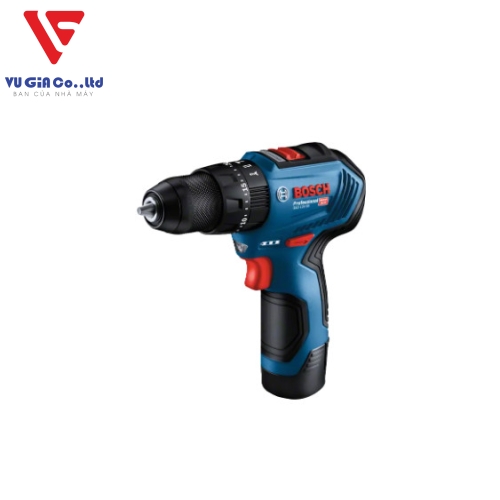

GSB 12V-30 PROFESSIONAL

SPECIFICATIONS
Additional data
Torque (soft/hard/maximum)
18/30/- Nm
Idle speed (1st gear / 2nd gear)
0 – 420 / 0 – 1,600 rpm
Battery type
Lithium-Ion Battery
Maximum impact rate
24,000 bpm
Chuck capacity, max/min
1/10 mm
Weight does not include battery
0.82 kg
Torque settings
20+2
Drilling diameter
Maximum drilling diameter in wood
20 mm
Maximum drilling diameter on aluminum
10 mm
Maximum drilling diameter in steel
10 mm
Maximum drilling diameter in masonry
8mm
Screw diameter
Maximum screw diameter
8mm
Total vibration value (Drilling on metal)
Spread value fluctuates ah
2.1 m/s²
K is uncertain
1.5 m/s²
Total vibration value (Dynamic drilling on masonry)
Spread value fluctuates ah
10.6 m/s²
K is uncertain
1.5 m/s²
Total Vibration Value (Screwed)
Spread value fluctuates ah
1.5 m/s²
K is uncertain
1 m/s²
Information about noise/vibration
Sound pressure level
82.5 dB(A)
Sound power level
93.5 dB(A)
K is uncertain
3 dB
Drilling in metal
Spread value fluctuates ah
2.1 m/s²
K is uncertain
1.5 m/s²
Dynamic drilling on masonry blocks
Spread value fluctuates ah
10.6 m/s²
K is uncertain
1.5 m/s²
Screw
Spread value fluctuates ah
1.5 m/s²
K is uncertain
1 m/s²
The A-rated noise level of a common power tool is as follows: Sound pressure level 82.5 dB(A); Sound power level 93.5 dB(A). Uncertainty K = 3 dB.
