GLL 3-80 PROFESSIONAL
- Product code: 0 601 063 S00
3 x 360° for a new level of visibility
High power diodes for high clarity
3 x 360° beam tracing enables simultaneous horizontal and vertical elevation measurement applications for highly efficient work
Intuitive user interface for easy operation

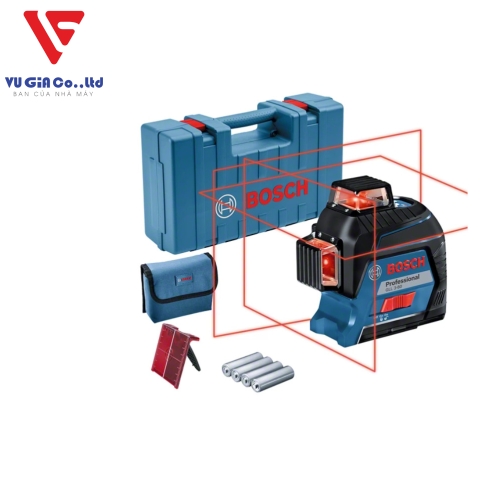

Included in this product sample
Laser sight plate
Bag
4 x 1.5V LR6 batteries (AA)
Carrying box
-
2698
-
Contact us
SPECIFICATIONS
Additional data
Scope works with receiver, value
120 m
Protection level
IP 54
Working scope, value
30 m
Laser diodes
Transmission line: 630 - 650 nm, < 10mW
Operating temperature
-10 – 40 °C
Storage temperature
-20 – 70 °C
The type with laser
2
Operating range
maximum 30 m
Working distance from receiver
maximum 120 m
Accuracy
± 0.3 mm/m*/** (*for 4 horizontal intersection points; **additional deviation depending on use)
About balancing himself
± 4°
Time to regain balance
4 seconds
Power supply
4 x 1.5V LR6 (AA) batteries
Operating time (max)
4 h in 3-way mode
Tripod thread
1/4", 5/8"
Weight, approx
0.82 kg
Laser line color
red
Slideshow

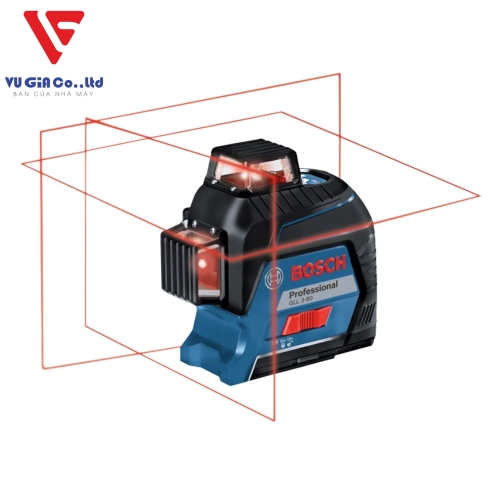

3 x 360° lines
Compatible laser receiver
L-R 6 + 7
GLL 3-80 PROFESSIONAL: MORE INFORMATION
Outstanding features of the product
The GLL 3-80 Professional laser line beam machine projects 3 x 360° beam lines for higher visibility. High power diodes for high clarity. The instrument's 3 x 360° beam line enables simultaneous horizontal and vertical elevation applications around an entire room for highly efficient work, while the instrument's intuitive user interface facilitates operation. operate easily.
Devices & Applications

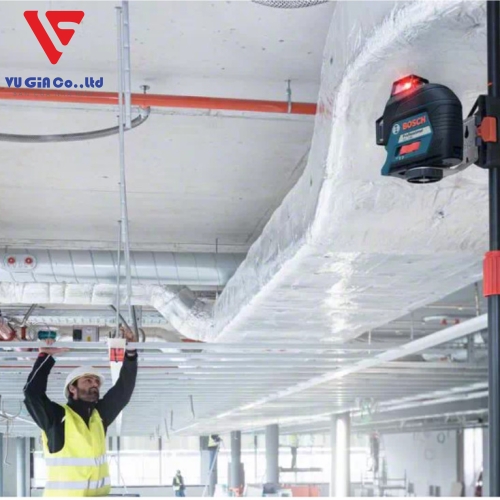

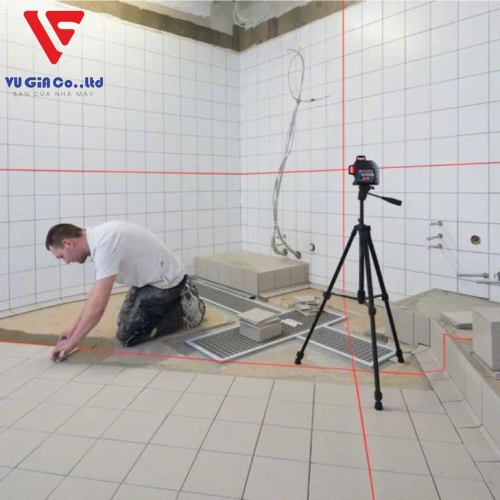

This standard laser line machine is specialized for hanging suspended ceilings, building floors, installing windows, installing shelves, laying drainage pipes, building frames for dry walls and tiling.
Additional information
The GLL 3-80 Professional is ideal for quick self-leveling and is capable of self-leveling on uneven surfaces up to +/- 4° in less than 4 seconds with excellent accuracy of ± 0.3 mm /m*/**. The instrument has a maximum operating range of 120m when using the optional LR 6 or LR 7 Professional receiver. This laser reference pointer is compact, easy to handle and extremely robust (IP54).
