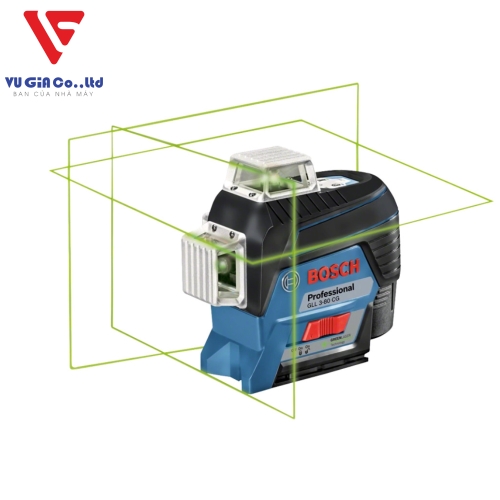

GLL 3-80 CG PROFESSIONAL

GLL 3-80 CG PROFESSIONAL

  • Product code: 0 601 063 U80

Green rays appear sharp in 3 x 360°. Connecting is simple.
Visibility is increased 4 times thanks to the Green Laser
Bluetooth® connection to your smartphone for remote control and touchless machine adjustments
High working efficiency thanks to 3 360° x-rays. Operate horizontal and vertical beams simultaneously in empty rooms with just one device.
Included in this product sample

Laser sight plate

Bag

BM 1 Professional universal holder

Order number: 0 601 015 A00

4 x 1.5V LR6 batteries (AA)

Clip

Order number: 1 609 B00 839

AA1 alkaline battery power supply

Serial number: 1 608 M00 C1B

Carrying box

  • 2830
  • Contact us

SPECIFICATIONS
Additional data
Scope works with receiver, value
120 m
Protection level
IP 54
Working scope, value
30 m
Laser diodes
500 – 540 nm, < 10 mW
Operating temperature
-10 – 40 °C
Storage temperature
-20 – 70 °C
The type with laser
2
Operating range
30 m
Working distance from receiver
120 m
The working range does not have a receiver
30 m
Accuracy
± 0.2 mm/m
About balancing himself
± 4°
Time to regain balance
4 seconds
Power supply
12V Li-Ion battery, 4 x 1.5V LR6 (AA) batteries
Operating time (max)
6 h (Li-Ion) and 4 h (4 x AA) in 3-way mode
Tripod thread
1/4", 5/8"
Weight, approx
0.9 kg
Laser line color
green
Slideshow
3 x 360° lines
Compatible laser receiver
LR 7
