GLL 3-60 XG PROFESSIONAL
- Product code: 0 601 063 ZK0
3 x 360⁰ Green laser standard line beam machine - Versatile height measurement solution
Versatile solution - 3 x 360° green laser reference line with 1 horizontal and 2 vertical lines for your daily altimeter needs
Visibility - Optimal laser path thanks to Bosch green laser technology
Versatile - Unique slim cone and mirror-style design accommodates various applications, including gypsum concrete
Included in this product sample
Laser sight plate
Bag
4 x 1.5V LR6 batteries (AA)
-
2300
-
Contact us
SPECIFICATIONS
Additional data
Scope works with receiver, value
60 m
Protection level
IP 54
Working scope, value
30 m
Laser diodes
500 – 540 nm, < 10 mW
The type with laser
2
Operating range
maximum 30 m
Working distance from receiver
maximum 60 m
Accuracy
± 0.3mm/m* (*plus error depending on usage)
About balancing himself
± 3°
Power supply
4 x 1.5V LR6 (AA) batteries
Tripod thread
1/4" & 5/8"
Weight, approx
0.78 kg
Laser line color
green
Slideshow

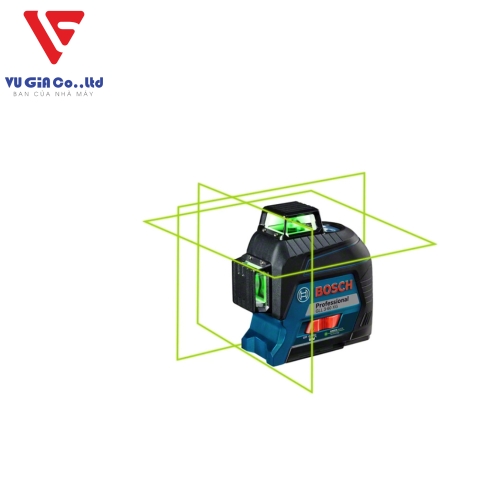

3 x 360° lines
Compatible laser receiver
LR 7
