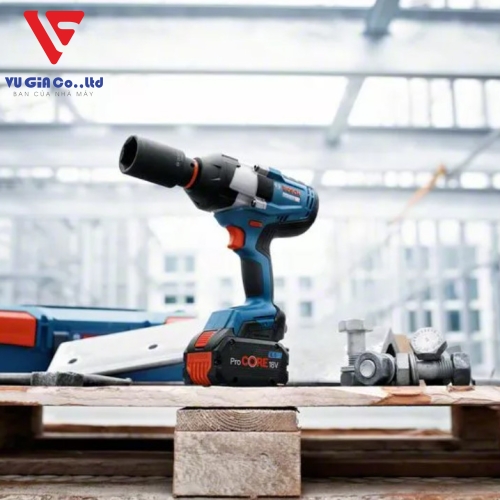

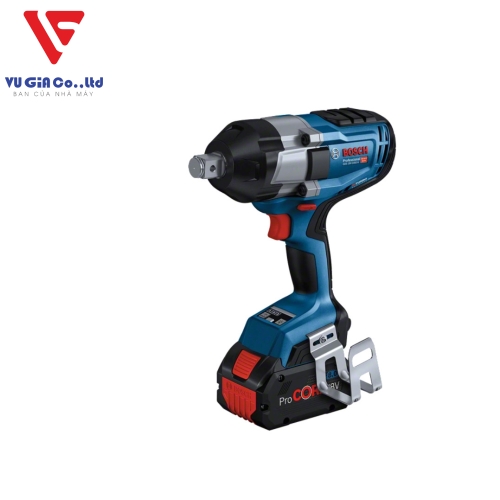

GDS 18V-1050 H PROFESSIONAL
- Product code: 0 601 9J8 5L1
Best maximum power: 3/4" high torque impact wrench with BITURBO Brushless technology
Impressive power with comfortable battery life thanks to the ProCORE 18V battery and brushless motor
High performance motor with tightening torque of 1,050Nm and breaking torque of up to 1,700Nm
Optimum agility and controlled power thanks to 3-speed/torque adjustment
Included in this product sample
Cardboard box
-
2178
-
Contact us
SPECIFICATIONS
Additional data
Battery voltage
18.0V
Torque, max.
1,050 Nm
No-load speed
0 rpm
Torque, maximum (difficult screwdriving jobs)
1,050 Nm
Tool holder
Square Nose 3/4''
Starting torque, max
1,700 Nm
Torque adjustment range, min/max, level 1
0/350 Nm
Torque adjustment range, min/max, level 2
0/750 Nm
Torque adjustment range, min/max, level 3
0/1050 Nm
Idle speed (Level 1)
0 rpm
Idle speed (Level 2)
0-1,200 rpm
Idle speed (Level 3)
0-1,750 rpm
Torque settings
3
Weight does not include battery
2.9 kg
Impact rate
0-2,600 bpm
Impact Rate (Level 1)
0-1,600 bpm
Impact Rate (Level 2)
0-2,400 bpm
Impact Rate (Level 3)
0-2,600 bpm
Screw diameter
Screw diameter
M 14 - M 24
Total vibration value (Tighten screws and nuts of maximum allowable size)
Spread value fluctuates ah
13.5 m/s²
K is uncertain
1.5 m/s²
Tighten screws and nuts to the maximum allowable size
Spread value fluctuates ah
13.5 m/s²
K is uncertain
1.5 m/s²
The A-rated noise level of common power tools is as follows: Sound pressure level 95 dB(A); Sound power level 106 dB(A). Uncertainty K = 5 dB.
GDS 18V-1050 H PROFESSIONAL: MORE INFORMATION
Outstanding features of the product
The GDS 18V-1050 H Professional is a 3/4" impact wrench featuring a brushless motor for the most diverse fields of use. Its BITURBO Brushless technology combines electric power with versatility. Battery life comfort is maximized for the ProCORE18V battery. When performance is needed for heavy-duty work, the new impact mechanism delivers 1,050Nm of tightening torque and 1,700Nm of breaking torque for work environments. High flexibility in the power control function is guaranteed by the 3-speed/torque adjustment, allowing suitable adjustment according to the respective job requirements.
Devices & Applications

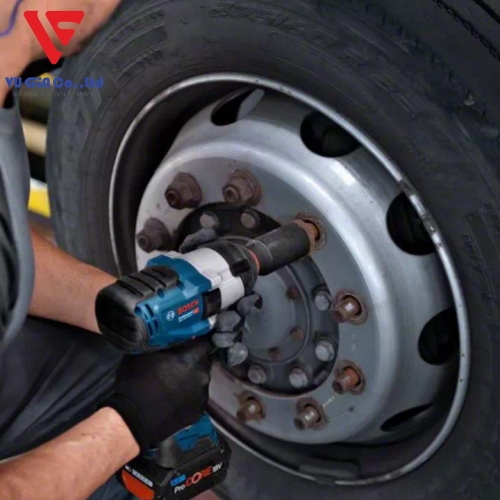

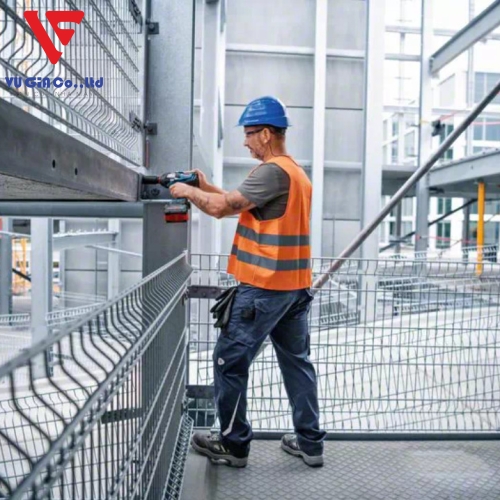

The main areas of use for the GDS 18V-1050 H Professional are metal works (M10-M24) such as structural steel construction, metal assembly, pipe fitting, truck maintenance and material construction. wood material. The tool is compatible with all Bosch Professional 18V batteries and chargers (Professional 18V system).
