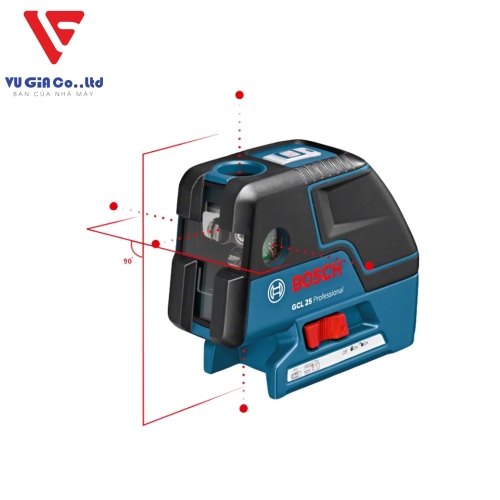

GCL 25 PROFESSIONAL

Product code: 0 601 066 B00

Simple solution for all short distance elevation measuring operations and conversion jobs
Extremely versatile: two-in-one integrated laser projecting horizontal lines and 5 points
Easy to use thanks to user-friendly design
Compact and convenient design

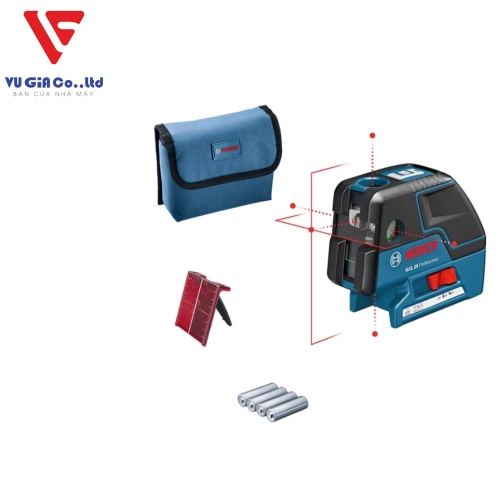

Included in this product sample

Laser sight plate

Protective bag

4 x 1.5V LR6 batteries (AA)

L-BOXX tool case

Views:
2726
Price:
Contact us

Products Information
Comment

SPECIFICATIONS
Additional data
Protection level
IP 54
Operating range
10 m
Accuracy
Laser beam and horizontal spot beam: ± 0.3mm/m*; Vertical spot beam: ± 0.5mm/m* (*plus error depending on usage), Horizontal laser beam: ± 0.2mm/m*; Vertical laser beam: ± 0.3mm/m* (*plus error depending on usage)
Slideshow
2 lines / 5 points
Working scope, value
10 m
Laser diodes
630 – 650 nm, < 1mW
Operating temperature
-10 – 50 °C
Storage temperature
-20 – 70 °C
The type with laser
2
Working range of laser points, max
10 m (top), 5 m (bottom), 30 m horizontal
About balancing himself
± 4°
Time to regain balance
4 seconds
Power supply
4 x 1.5V LR6 (AA) batteries
Operating time (max)
12 h in point and line mode, 24 h in 5-point mode, 30 h in line mode
Tripod thread
1/4", 5/8"
Weight, approx
0.6 kg
Laser line color
red
Color of points
red
Celestial point accuracy
± 0.7mm/m* (*plus error depending on usage)
