Electronic micrometer external measurement Mitutoyo 293-232-30 (50 - 75mm)

Specifications
Produced by Mitutoyo
Model 293-232-30
Made in Japan
Measuring range 50 - 75mm
Accuracy ±2μm
Visibility 0.001mm
Connection port There is a data output SPC port
Mitutoyo electronic external micrometer
Digital outside micrometers (Digimatic outside micrometers) is a length measuring instrument based on the principle of using screw threads to measure linear distances originating from Gascoigne's invention in 1638. Mitutoyo electronic external micrometers are manufactured according to modern Japanese technology with IP65 waterproof standard, many options such as measuring range, accuracy, measurement speed, display in mm-inch units, how to enter data after measuring ... suitable with different customer requirements.

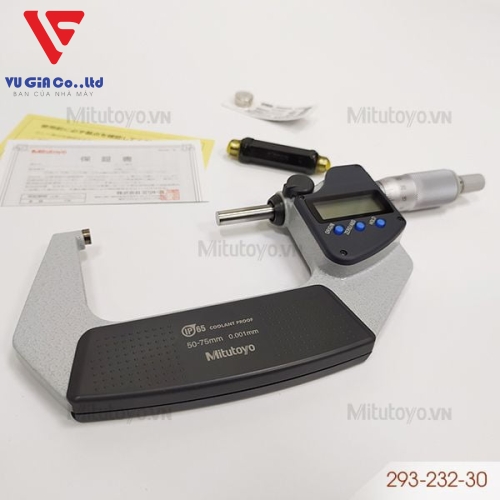

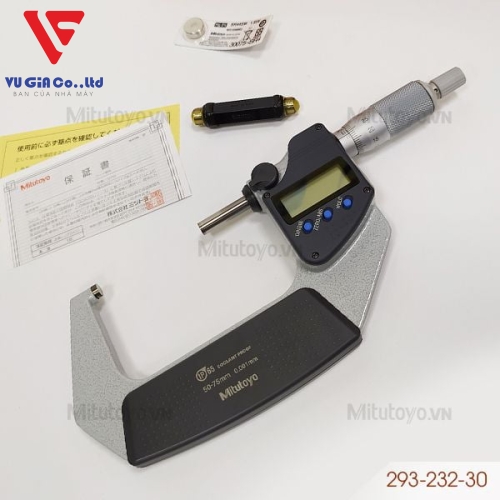

Electronic micrometer for external measurement Mitutoyo 293-232-30

Electronic micrometer measured outside mitutoyo 293-232-30 taken at Mitutoyo.VN

The Mitutoyo 293-232-30 external micrometer is compactly designed with a measuring range of 50 - 75mm metric, 0.001mm display with ±2μm accuracy, IP65 water resistance, and SPC output port. Whether. The product is suitable for measuring the length, outside diameter of round parts, material thickness in technical industries such as construction, mechanical engineering, molds, automobiles, furniture, ... with high precision. high precision.

Advantages of micrometer measuring externally
- Mitutoyo 293-232-30 electronic external micrometer using a rotating electromagnetic induction reader combined with mitutoyo's ABSOLUTE technology helps to accurately determine the measuring position of the ruler as soon as the power is turned on without any adjustment or setting. reset the ruler.

- Mitutoyo electronic external micrometer is designed to be compact and sophisticated, the two measuring heads are coated with anti-wear (carbide) coating to increase durability and use time.

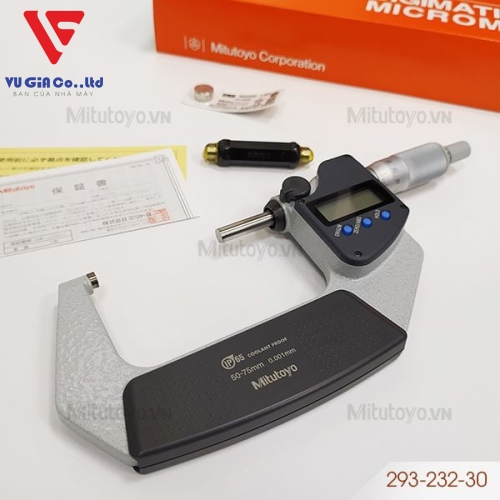

Electronic micrometer for external measurement Mitutoyo 293-232-30

Electronic micrometer measured outside mitutoyo 293-232-30 taken at Mitutoyo.VN

- Mitutoyo electronic external micrometer is equipped with a slide for constant measuring force to help you easily use the device, accurate measurement results, high measurement stability.

- Standard shaft and accessories are convenient to calibrate the standard parameters for the Micrometer easily to help the device operate stably, ensuring measurement accuracy.

- Electronic external micrometer uses 1 Mitutoyo SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error, contained in a plastic box or wood helps protect the ruler better, convenient in storage and transportation.

Electronic external micrometers need to be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.
