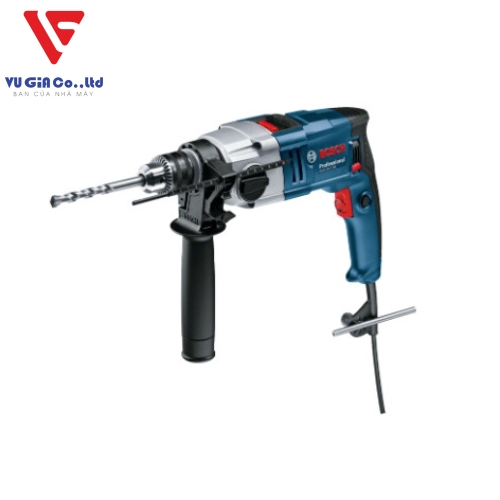

GSB 20-2 RE PROFESSIONAL

Product code: 0 601 1A2 1K1

Powerful, two-speed impact drill with outstanding durability and performance
Enhanced sturdiness with stacked metal gearbox housing design
Powerful 800 W motor for increased performance and durability
The 2-gearbox function ensures two speeds combined with a two-mode dynamic shifter for increased versatility
Included in this product sample

Key to open the pair

Depth gauge

Extra handle

Cardboard box

Views:
2652
Price:
Contact us

Products Information
Comment

SPECIFICATIONS
Additional data
Rated input power
800W
Weight
2.5 kg
Idle speed, 1st gear
0 – 1,100 rpm
Idle speed, 2nd gear
3,000 rpm
Impact ratio at idle speed
0 – 48,000 bpm
Rated speed
740 rpm
Rated torque
5.2 / 2.0 Nm
Chuck capacity, max/min
1.5 – 13 mm
Drilling range
Diameter of drilling in wood
25 / 40 mm
Drilling diameter in concrete
16/20mm
Drilling diameter in steel
8 / 13 mm
Drilling diameter in masonry
22mm
The noise level at the A rating of a common power tool is as follows: Sound pressure level dB(A); Sound power level dB(A). Uncertainty K = dB.
