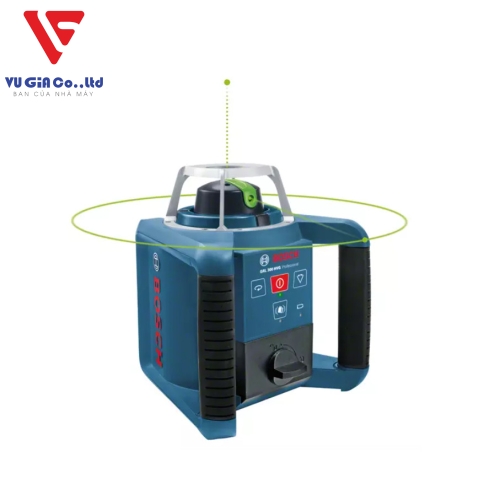

GRL 300 HVG SET PROFESSIONAL

Product code: 0 601 061 703

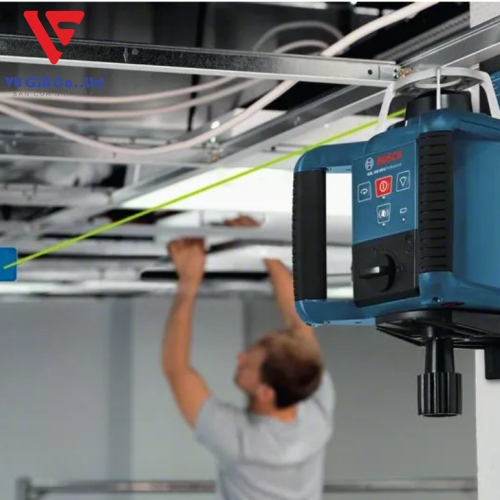

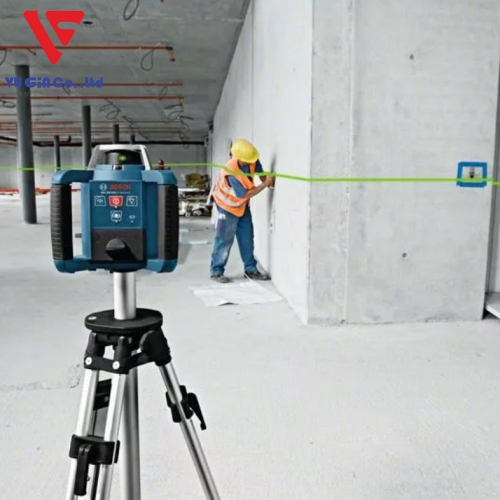

Outstanding visibility for indoor applications
Green laser provides 4 times better visibility than red laser
Easy setup in both landscape and portrait modes thanks to 8% (±5°) self-leveling
The shock warning function can be turned off or on, preventing balance errors in the event of shock or vibration

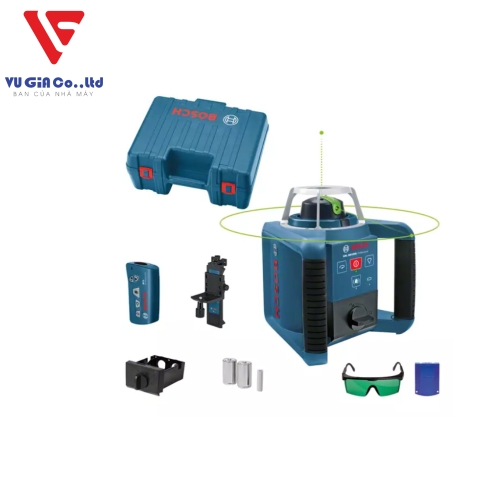

Included in this product sample

1 x 1.5V LR6 battery (AA)

WM 4 Professional multi-purpose mounting bracket

Order number: 0 601 092 400

2 x 1.5V LR20 batteries (D)

Laser sight glass (blue) (spare part number 1 608 M00 05J)

LR 1G Professional laser receiver

Order number: 0 601 069 700

1 x 9V 6LR61 block battery

RC1 Professional remote control

Order number: 0 601 069 900

Shelf

Serial number: 1 608 M00 05A

Mia laser sight (blue) (spare part number 1 608 M00 05K)

Views:
2536
Price:
Contact us

Products Information
Comment

SPECIFICATIONS
Additional data
Scope works with receiver, value
300 m
Protection level
IP 54
Working scope, value
100 m
Laser diodes
532 nm, < 5 mW
Operating temperature
0 – 40 °C
Storage temperature
-20 – 70 °C
The type with laser
3R
Operating range
100 m
Working distance from receiver
300 m (Diameter)
The working range does not have a receiver
100 m (Diameter)
Accuracy
± 3.0 mm at 30 m* (*additional deviation depending on use)
About balancing himself
± 5° (8%)
Time to regain balance
15 seconds
Rotation speed
150, 300, 600 rpm
Power supply
2 x 1.5V LR20 batteries (D)
Tripod thread
5/8"
Weight, approx
1.8 kg
Laser line color
green
Compatible laser receiver
LR 1G
Slope function
Are not
