HILTI HAS-U 5.8 M12x160 CHEMICAL BOLT

DESCRIPTION OF HILTI HAS-U 5.8 M12x160 CHEMICAL BOLT:

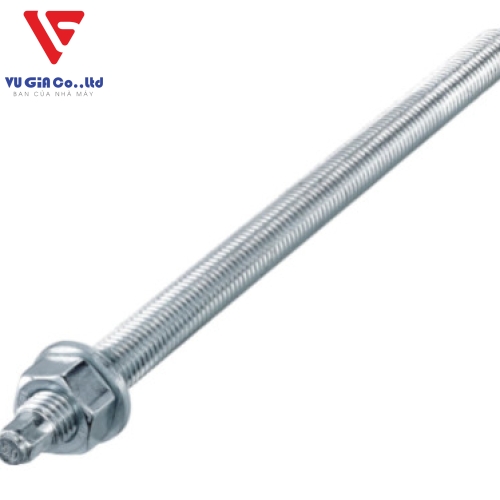

Hilti HAS-U 5.8 M12x160 chemical bolts include 2 main parts

The M12x160 bolt part includes a 12mm diameter bolt body, 160m long + 1 M12 nut + 1 M12 flat bolt, M12 warp bolt can be added upon request. The bolt body usually has a hexagonal head, the other end is cut into a V shape and has no notch in the middle. Electrolytic galvanized bolts have a durability level of 5.8
Chemical section. You can use chemicals in bottle form using a pump gun or M10 capsule chemicals


APPLICATIONS OF HILTI HAS-U 5.8 M12x160 CHEMICAL BOLT:

Install railings
Installing glass facades and stone facades
Install steel column legs and steel beams
Install canopy roof. Roof lobby
Install emergency stairs
Install ventilation fans
Fix the foot of the shelf.
Fixing pipes in high-rise buildings or factories, hospitals, schools,...
Install the tripod


CONSTRUCTION ACTION OF HILTI HAS-U 5.8 M12x160 CHEMICAL BOLT:

Step 1: Drill a 14mm hole, 110mm deep in the concrete
Step 2: Use a brush and dust blower to clean the bore
Step 3: Pump chemicals into the borehole (If the chemical is in bottle form, use a pump gun) or place the capsule into the borehole (if the chemical is in capsule form)
Step 4: Insert the threaded rod into the drill hole so that the chemical flows out to the mouth (If the chemical is in bottle form, use a pump gun) or drill the threaded rod to break the capsule (If using chemicals in capsule form. The threaded rod is connected to the drill via a connection tool and drilled to break the capsule)
Step 5: Wait for the chemical to set and then install the load. Normally, if you use capsule chemicals, the time for the chemicals to set to maximum load is 30-45 minutes. If you use epoxy chemicals in bottle form using a pump gun, the average time to reach maximum load is 8 hours.


SPECIFICATIONS OF HILTI HAS-U 5.8 M12x160 CHEMICAL BOLTS:

Traction force: 20KN corresponding to a weight of 2 tons
Cutting force: 20KN corresponding to a weight of 2 tons
The above parameters are recommended when used with C20/25 basic concrete
