FISCHER CHEMICAL BOLT

DESCRIPTION OF FISCHER CHEMICAL BOLT

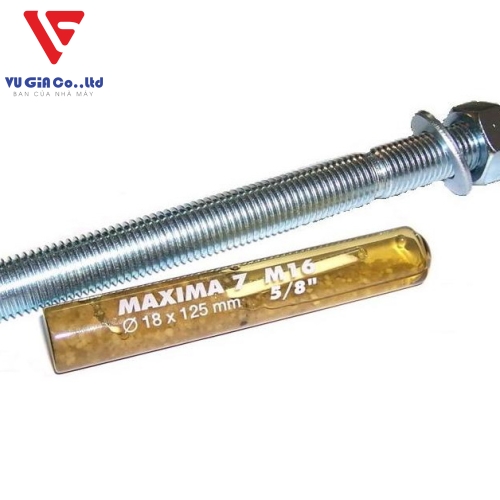

Fischer chemical bolts include 2 main components:

The bolt part includes bolt body + 1 nut + 1 flat bolt, can add flat bolt as required. The bolt body usually has a hexagonal head, the other end is cut into a V shape and has a notch in the middle. Electrolytic galvanized bolts have a durability level of 5.8
Chemical section. Chemicals can be used in bottle form using a pump gun or chemical capsules


APPLICATIONS OF FISCHER CHEMICAL BOLT

Install railings
Installing glass facades and stone facades
Install steel column legs and steel beams
Install canopy roof. Roof lobby
Install emergency stairs
Install ventilation fans
Fix the foot of the shelf.
Fixing pipes in high-rise buildings or factories, hospitals, schools,...
Install the tripod


FISCHER CHEMICAL BOLTS CONSTRUCTION OPERATION

Step 1: Drill holes of diameter and depth in the concrete according to the specifications in the catalog
Step 2: Use a brush and dust blower to clean the bore
Step 3: Pump chemicals into the borehole (If the chemical is in bottle form, use a pump gun) or place the capsule into the borehole (if the chemical is in capsule form)
Step 4: Insert the threaded rod into the drill hole so that the chemical flows out to the mouth (If the chemical is in bottle form, use a pump gun) or drill the threaded rod to break the capsule (If using chemicals in capsule form. The threaded rod is connected to the drill via a connection tool and drilled to break the capsule)
Step 5: Wait for the chemical to set and then install the load. Normally, if you use capsule chemicals, the time for the chemicals to set to maximum load is 30-45 minutes. If you use epoxy chemicals in bottle form using a pump gun, the average time to reach maximum load is 8 hours.


FISCHER CHEMICAL BOLT FORCE SPECIFICATIONS

According to the manufacturer's catalog for each specific diameter


Frequently asked questions:

1, What are chemical bolts?

Chemical bolts are a special type of bolt, the main material is a chemical designed to connect the threaded rod with the base material parts to firmly fix the hinges and column bases.

2, What is the structure of chemical bolts?

Chemical bolts consist of two main components: bolts (including thread body, nut (ecu) and washer (washer)) and chemicals.

3, What is the application of chemical bolts?

Chemical bolts have the ability to withstand large loads and withstand dynamic loads well, so they are often used in important applications such as: installing column bases, installing steel beams, installing emergency stairs, installing lobby roofs (canopy roofs), ...

4, What types of chemical bolts are there?

On the market today, there are two popular types of chemical bolts: tube-shaped chemical bolts and tube-shaped chemical bolts.
