Mitutoyo electronic thickness gauge 700-119-30 (0-12mm)

Mitutoyo electronic thickness gauge 700-119-30 (0-12mm)

  • Product code: 700-119-30

Warranty 12 months

The Mitutoyo 700-119-30 electronic thickness gauge is designed to accurately measure the thickness of paper, PE film, film, wire, sheet metal and other similar materials.

  • 2404
  • Contact us

Specifications
Produced by Mitutoyo
Model 700-119-30
Made in Japan
Measuring range 0-12 mm
Accuracy ±0.02 mm
Display 0.01 mm
Electronic thickness gauge
The Mitutoyo 700-119-30 Electronic Thickness Gauge is a gauge based on the working principle of the Mitutoyo electronic gauge designed to quickly and efficiently measure small object sizes with low accuracy. high precision.

Thickness Gauge 700-119-30

Đồng hồ đo độ dày 700-119-30

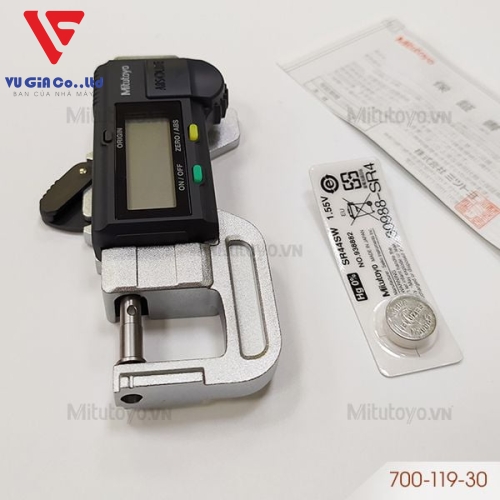

Thickness gauge 700-119-30 taken at Mitutoyo.VN

Electronic thickness gauge 700-119-30 has high accuracy, measuring range 0-12mm Metric measurement. Easy-to-use 0.01mm display, accuracy: ±0.02mm for accurate measurement of the thickness of paper, PE film, film, wire, sheet metal and other similar materials.

Advantages of Mitutoyo electronic thickness gauge
The Mitutoyo 700-119-30 electronic thickness gauge has a wear-resistant (carbide) coated tip, an adjustable handle for left-handed users, and a lightweight design that makes it easy to use. equipment, fast accurate measurement results, high measurement stability.

The Mitutoyo electronic thickness gauge uses an electromagnetic induction reader with a linear encoder on the body combined with mitutoyo's ABSOLUTE technology to help accurately determine the measuring position of the ruler as soon as the power is turned on without any adjustment. adjust or reset the ruler.

Thickness Gauge 700-119-30

Đồng hồ đo độ dày 700-119-30

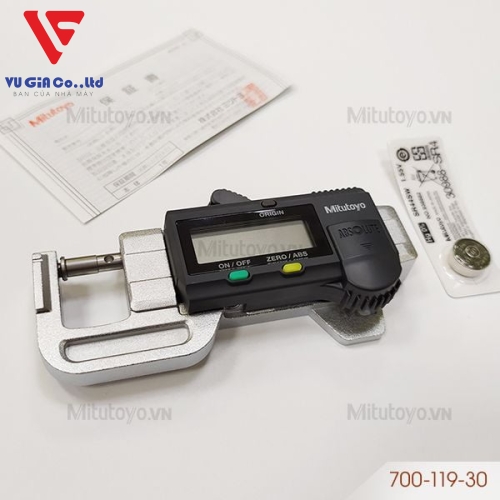

Thickness gauge 700-119-30 taken at Mitutoyo.VN

The LCD screen is designed with high aesthetics, the dial can be adjusted to rotate 330º, the character height of 11.0 mm improves readability, The obtained measurement results are displayed on the electronic screen clearly. Clear results help users easily read the results quickly.

Electronic thickness gauge uses 1 Mitutoyo SR44 battery with 0% Hg component to help protect the environment and increase usage time, low voltage warning function, measurement error error, contained in a plastic box Helps protect the ruler better, convenient in storage and transportation.

Notes when using electronic thickness gauge.
- Thickness gauge should be stored in a dry place, away from moisture and high humidity, regularly checked for accurate calibration.

- Do not use the ruler to measure when the object is rotating or moving, when using it, avoid dropping the ruler on the floor, workshop floor, machine tape, hard surfaces.

- Always keep the ruler free of dirt and dust on the two measuring heads, the surface of the two measuring heads before and after use must be cleaned with a clean, dust-free paper or use RP7 solution to clean the two probes afterwards. Use clean, dust-free paper to clean.

Thickness Gauge 700-119-30

Đồng hồ đo độ dày 700-119-30

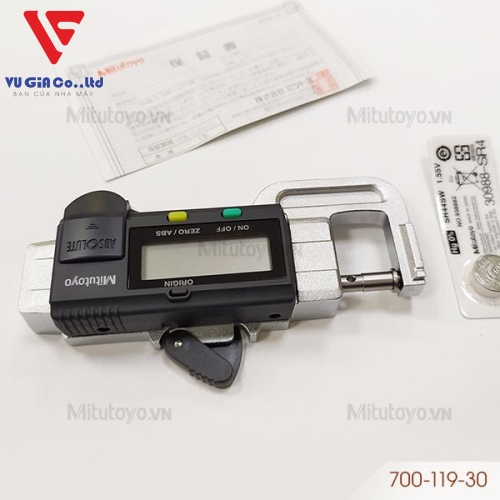

Thickness gauge 700-119-30 taken at Mitutoyo.VN

- Do not use the ruler in an environment with water or oil that directly affects the ruler, in case the ruler gets wet with water or oil, you must remove the battery cover, remove the battery immediately and contact the company's staff directly to check. cleaning, re-evaluating the stability of the ruler.

- When not in use, press the On/Off button to turn off the power, use a thin film to separate the two measuring heads to avoid direct contact, put the ruler in the correct position in the plastic box for storage. When the screen dims with the letter B flashing, the battery is almost dead and you must replace the battery for the ruler.
